LinkPro Z

Wireless Mesh IP/PoE Control Gateway

This product is discontinued. See TRO.Y and Helen

LinkPro Z is a Zigbee 3.0 mesh controller for control of SI shade and screen products from any popular third-party control system, a smartphone, tablet or voice assistant such as Alexa. Designed to be installed in the ceiling of any home or office space, LinkPro Z even has options for flush mounting to blend into any interior space.


512-832-6939
M – F, 8AM – 6PM

We're here to help with any
questions or problems.
Visit Support

Email our support team with any questions or problems.
Contact Support

Zigbee Low Voltage

No recharging ever  |  Best for narrow windows  |  Ultra-quiet

Zigbee Low Voltage

No recharging ever  |  Best for narrow windows  |  Ultra-quiet

The Versatile Zigbee 3.0 Mesh Controller

LinkPro Z – Bluetooth, WiFi, RTS
and True PoE Wall Mount,
Ceiling Mount, Flush Mount.

The Versatile Zigbee 3.0 Mesh Controller

LinkPro Z – Bluetooth, WiFi, RTS and True PoE Wall Mount, Ceiling Mount, Flush Mount.

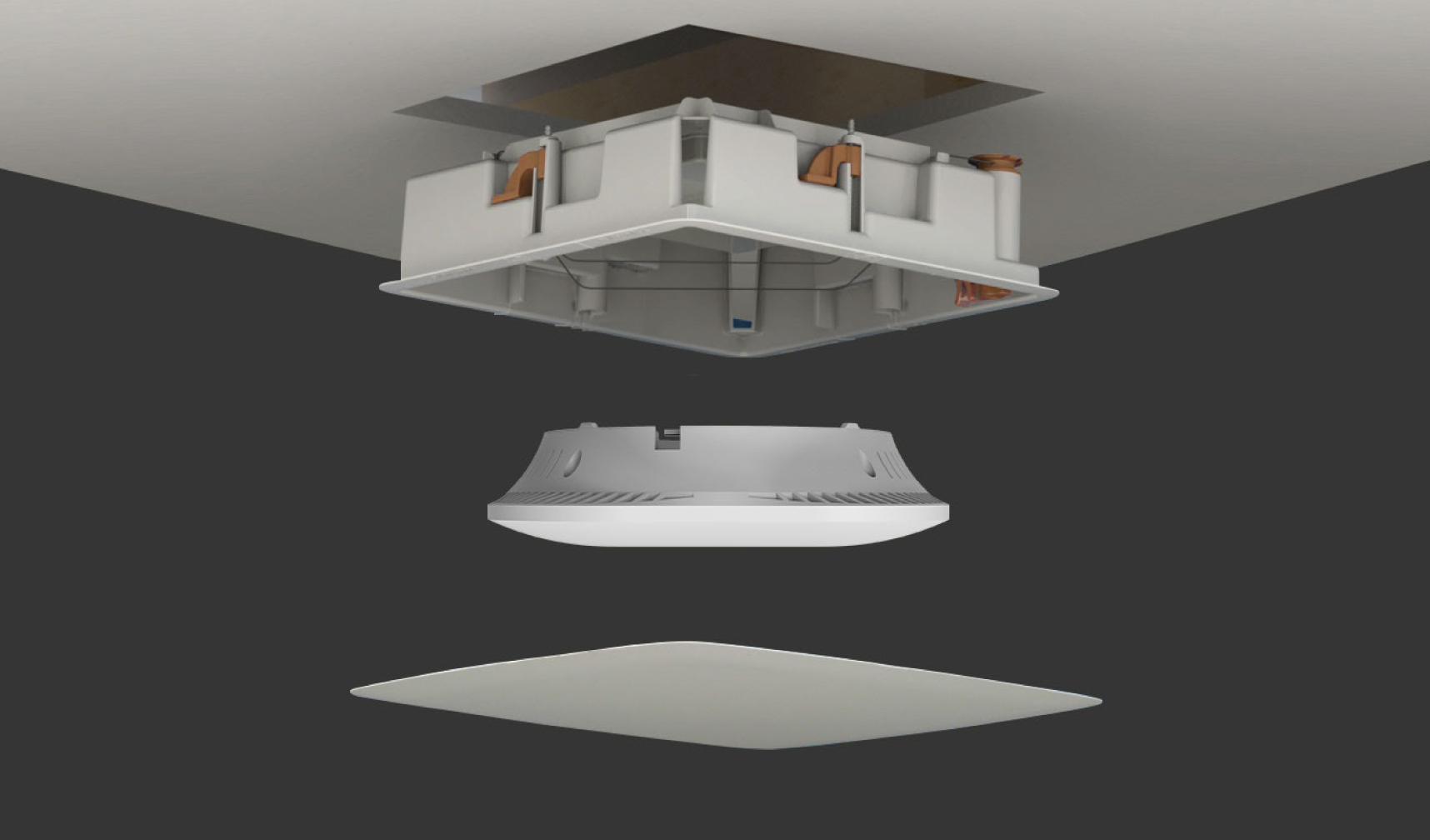

Flush Mount Kit

Provides security, accessibility in a professionally installed back box that completely hides LinkPro Z and many other popular wireless access points.

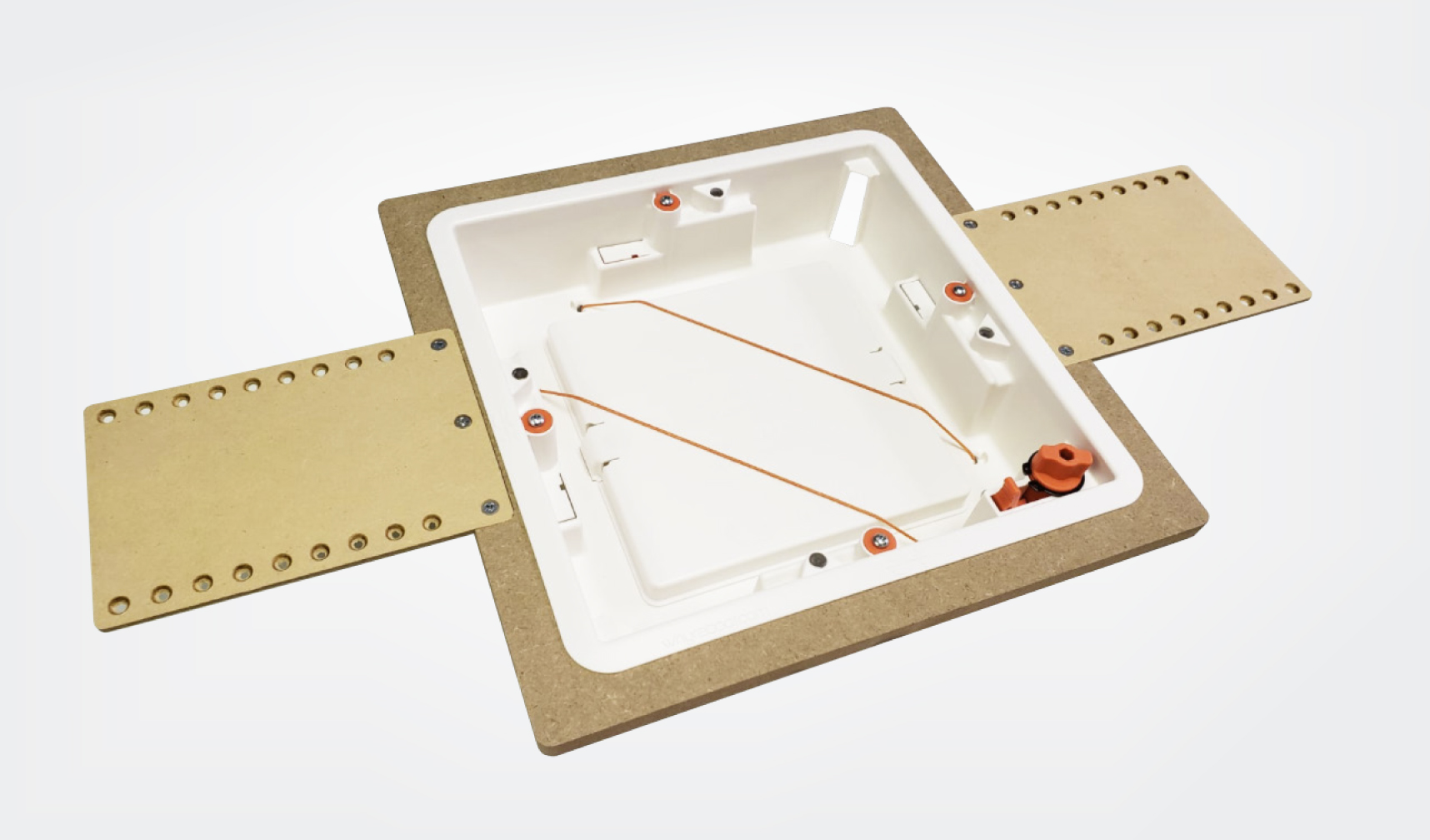

Pre-Construction Bracket

Allows LinkPro Z locations and pre-wiring to be preserved in new construction projects.

Flush Mount Kit

Provides security, accessibility in a professionally installed back box that completely hides LinkPro Z and many other popular wireless access points.

Pre-Construction Bracket

Allows LinkPro Z locations and pre-wiring to be preserved in new construction projects.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Voice

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Touch

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Voice

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Touch

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Slide background
Slide background
Input

PoE IEE 802.3bt/at (48v Passive)
+ (4,5) pins, – (7,8) pins

Power Consumption

25mA – 125mA

Material (Indoor use only)

ABS (94 – V0 Fireproof)

Dimensions

6.375” L x 6.375” W x 1.827” D
(162mm x 162mm x 46mm)

Parts in the Box

LinkPro Z, Magnetic Mounting Ring-Preinstalled, Original Mounting Ring, 48v Passive PoE Injector -Brick, 48v Passive PoE Injector-Wall Wart, Injector power cable, 5m CAT 5e, Mounting Screws, Original Ring Screws, 2m CAT 5E, Drywall Anchors


Radio Frequency

RTS: 433.42 MHz
Zigbee: 2.4 GHz

Compliance Specifications
  • UL Listed
  • CE Approved
  • RoHS Compliant

Drivers
  • Control4®
  • Crestron®
  • ELAN
  • RTI (APEX)
  • RTI (Integration Designer)
  • SAVANT
  • URC

Downloads available on Drivers site

Works with
  • LinkPro Z Flush Mount Kit
  • TaHoma
  • Situo remotes
  • Nano® Shades
  • Zen® Shades
  • TaHoma App
  • Smart Plug
  • Smart Outlet
Parts in the Box

Flush Mount Back Box, Flush Mount Cover Plate, Smaller WAP Spacer, Back Box Template/Instructions

Dimensions (cutout)

10.625’’ W x 10.625’’ H
(270mm x 270mm)

Additional Accessories

LinkPro Z – Flush mount kit Pre-construction bracket (Sold separately)

Compatible with
  • AP dimensions up to 8.9” x 8.9” x 2.65”
  • LinkPro Z / LinkPro
  • Ruckus R720
  • All Luxul WAPs
  • All Pakedge WAPs
  • All araknis WAPs
  • All Ubiquiti WAPs
  • and many others
Indoor use only
