KRATOS

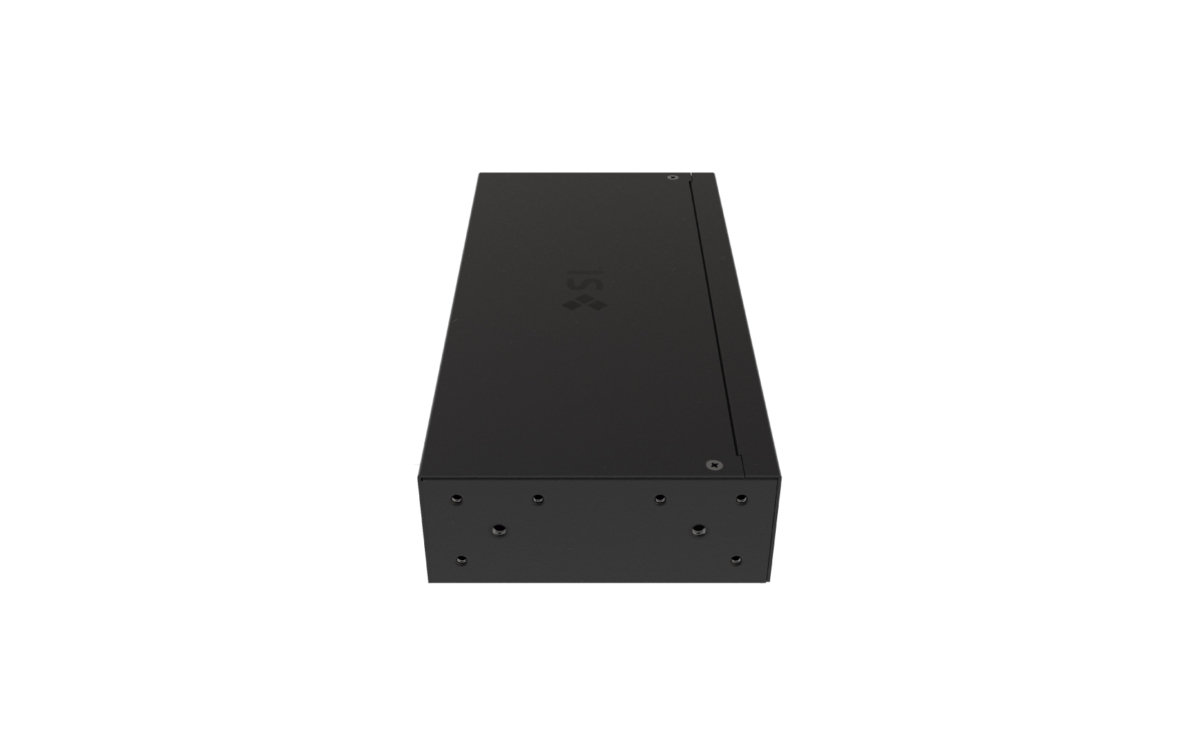

The KRATOS™ Low Voltage kit provides power for up to eight Zigbee or RTS Low Voltage shades or screens. This kit includes an 8-motor power hub, and a 250-watt 24v DC power supply, and all mounting and wiring accessories. Can be mounted in a rack or in a structured wiring enclosure. #201591 (Will not work for 485 motors)

Find a Specialist

512-832-6939
M – F, 8AM – 6PM

We're here to help with any
questions or problems.
Visit Support

Email our support team with
any questions or problems.

Contact Support

Zigbee Low Voltage

No recharging ever  |  Best for narrow windows  |  Ultra-quiet

Learn More

KRATOS - spec drawing

Features
  • Power for up to eight Zigbee/RTS LV shades/screens
  • Four 4 – position Terminal blocks
  • Ports protected against miswiring
  • Versatile mounting options
  • Completely solid state, no moving parts
  • Unit stays at room temperature (does not get hot)
Package Options – In the Box

#201591

1 Kratos unit, 1 250W Power Supply, 1 AC cable, 2 Universal Rack Ears, 1 Rack Mount Fascia, 10 Universal Mounting screws, 2 Din Rail Screws, 1 Long Rack Ear, 1.5 mm Hex Tool, 2 Universal Din Rail Brackets, 4 Terminal Blocks, 4 Rack Mount Screws, Quick Start Guide


Power Input
  • 24 – 28v DC
Power Consumption
  • 100 – 240v ~ 2.8A – 1.4A (50-60Hz)
Dimensions
  • 8.5’’ L x 4.1’’ D x 1.69” H
  • (216mm x 105 mm x 43 mm)
  • 1RU/Half Rack compatible

Wire types and length

Reference the Wire Topologies sheet for supported wire and pinouts.

Material (Indoor use only)

Sheet metal plenum rated
