Please use our screen builder or consult with your system designer for an official specification drawing. Screen materials may expand and contract slightly over time. SI allows a 1.5% tolerance within the viewing surface.
Features
- Suspended external mount
- Versatile deployment, maximizing space utilization
- Control options: RF Remote, RS485 + Dry contact control, or Central control
- Up to 16′ or 5m (195″) drop

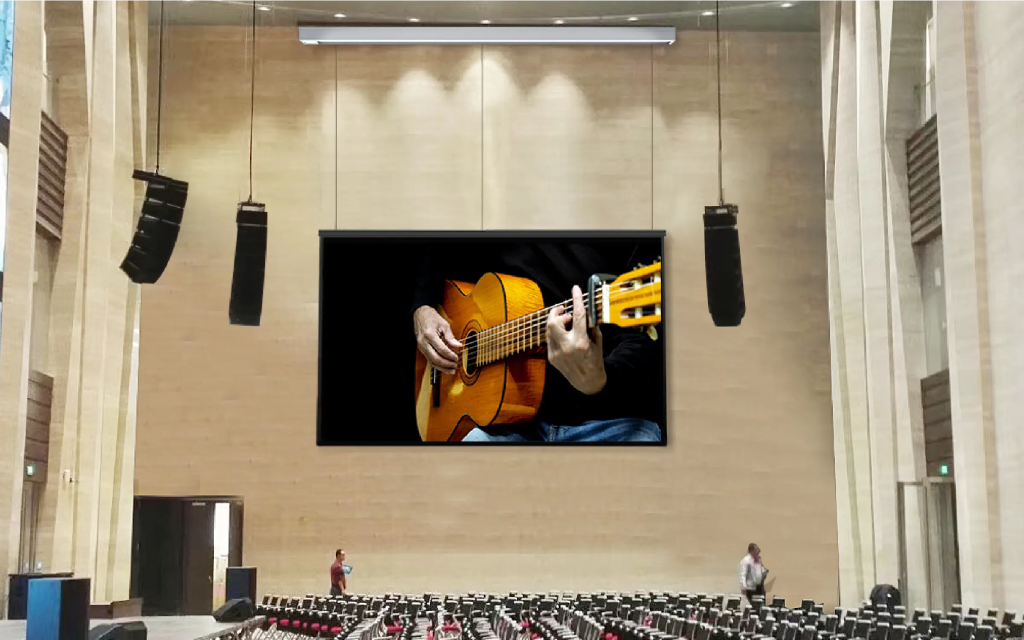

- Flown and ceiling mount options available
Aspect Ratios
16:9
16:10
Cassette Color
White
Methods of Control
Wired Integration and control
- Dry Contact
- 12v trigger
- IR
- Electrical Motor Limits
- Wall Switch

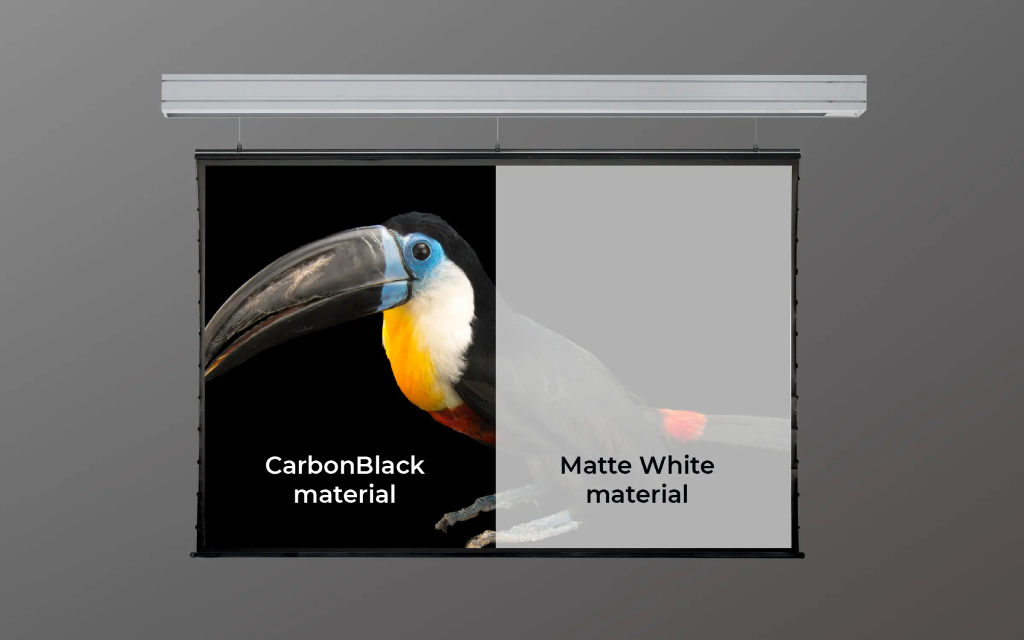

Materials

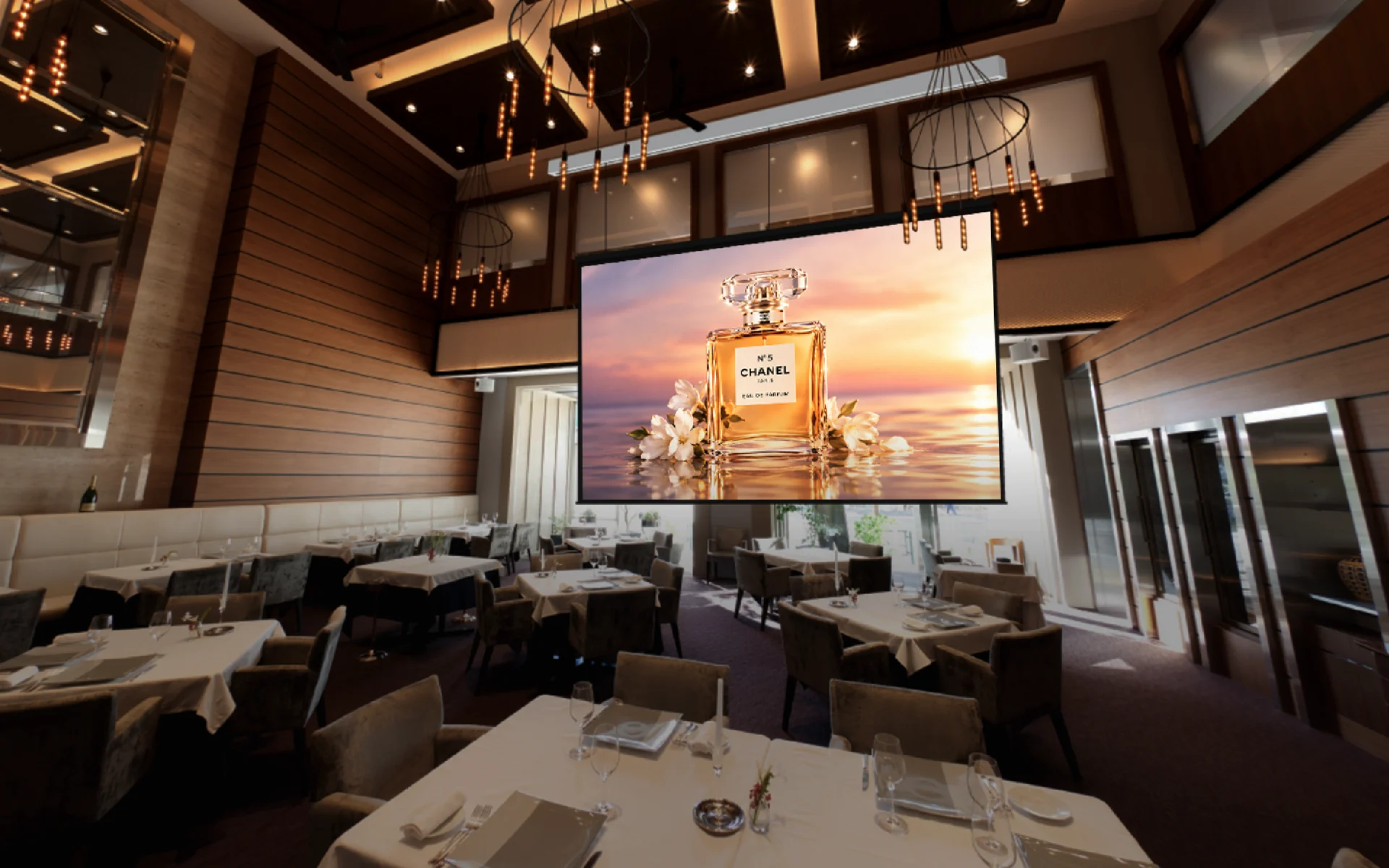

- Pure White 1.3
- CarbonBlack Hybrid Pro
Sizes
Min: 160″ (4064 mm)
Max: 300″ ( 7620 mm)
Compatible power sources
Configurable in 2 available motor types:
- 110v AC
*220v AC available for international
Environment
Operating temperature range is normal ambient (32 to 110 degrees), and humidity levels up to 90%.
Designed for dry settings only
Passed third party fire performance evaluation in accordance with underwriters laboratories (UL) 2043-13, fire test for heat and visible smoke release for discrete products and their accessories installed in air-handling spaces
|
|
