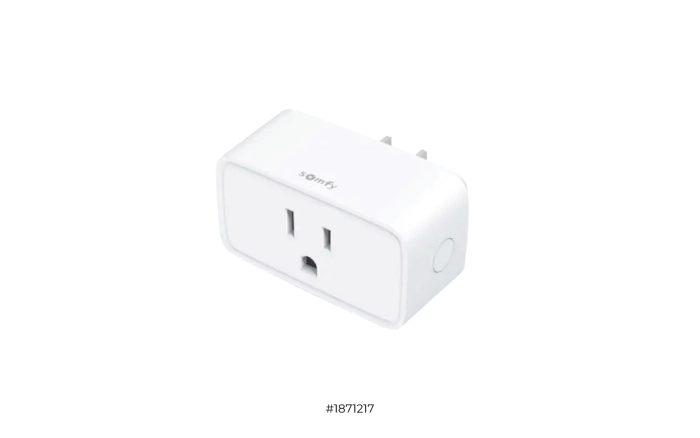

Smart Plug

$250.00

NEW & IMPROVED!

Smart Plug is a Zigbee 3.0 Edge Router for control of SI shade and screen products. This product is an important part of your Zigbee 3.0 mesh and you will need at minimum one per room, and in the case of many shades in the same room, one additional unit for every 7th shade in the same room. This device is both a repeater and a smart plug that allow the user to control any 110 vac device such as a lamp or fan to be controlled with SI approved apps such as the TaHoma App. The device can be bound with other Zigbee 3.0 devices such as a Zigbee 3.0 Nano shades when used with a TRO.Y. This Edge Router allows users to control our shading products from any smartphones, tablet or voice assistant such as Alexa. It utilizes the latest versions of Zigbee 3.0 and was designed to be installed in an open AC outlet in the home or office space. The smart plug works with SI approved apps such as the TaHoma App which is available for free on both Google Play and the App Store.

Find Local Dealer

512-832-6939
M – F, 8AM – 6PM

We're here to help with any
questions or problems.
Visit Support

Email our support team with any questions or problems.
Contact Support

Build your Zigbee 3.0 Mesh!

Professional Zigbee 3.0 Smart Plug with
Edge Routing – Build and extend your network
and add a control point for a fan or lamp.

Build your Zigbee 3.0 Mesh!

Professional Zigbee 3.0 Smart Plug with Edge Routing – Build and extend your network and add a control point for a fan or lamp.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Voice

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Touch

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Voice

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Touch

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Smart Plug Spec Drawing

Input

120V~/ 60Hz 15A

Output

120V~/ 15A max

Power Consumption

(Max) 1800W@120V (Resistive Load)

Relative Humidity

5% – 90% Non-condensing

Operating Temperature Range

32⁰F- 104⁰F (0⁰C- 40⁰C)

RF Protocol

Zigbee 3.0


Device Type

ZigBee Router

Dimensions

1.86’’ L x 1.86’’ W x 1.2” H
(47.4mm x 47.4mm x 30.5 mm)

Weight

1.4 lb. (0.64kg)

Radio Frequency

2.4 GHz

Max. RF Power

<10dBm
