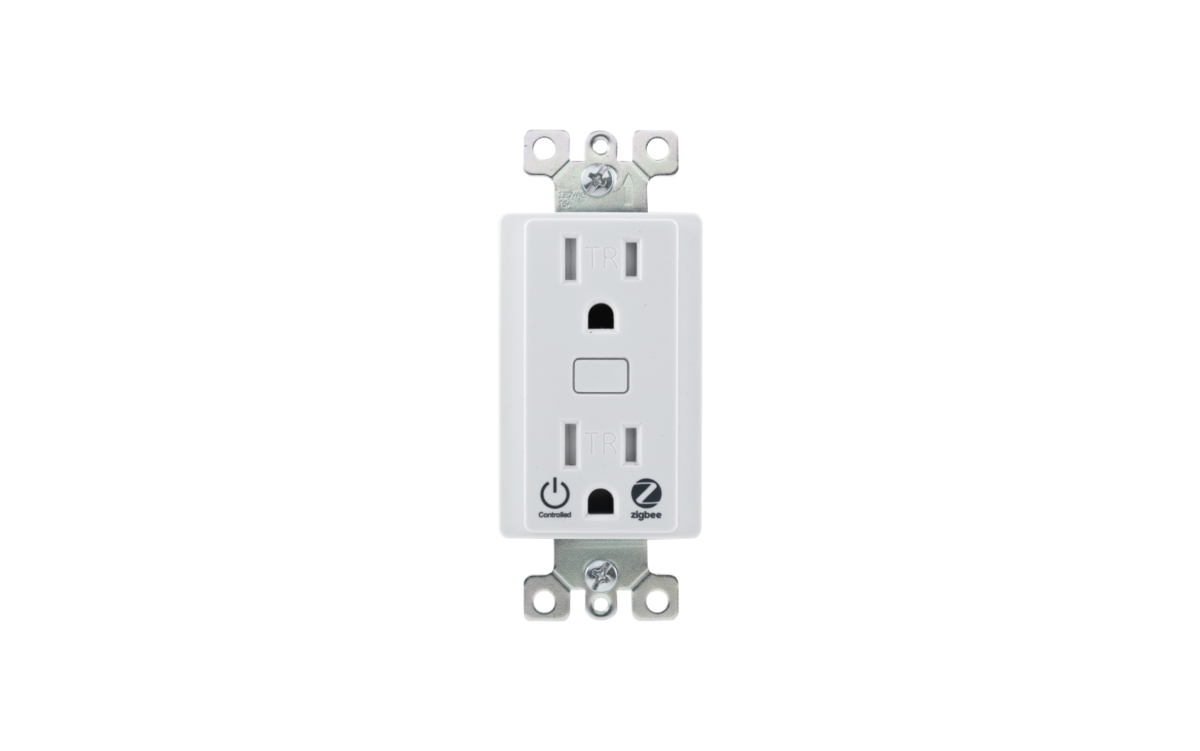

Smart Outlet

$250.00

New & Improved. Now Shipping.

Smart outlet is a Zigbee 3.0 Edge Router for control of SI shade and screen products. This product is an important part of your Zigbee 3.0 mesh and you will need at minimum one Edge Router per room, and in the case of many shades in the same room, one additional unit for every 16th shade in the same room. This device is both a router and a smart outlet that allow the user to control any 110 vac device such as a lamp or fan to be controlled with the TaHoma or other SI App. This device will bind to other Zigbee 3.0 devices such as a Zigbee 3.0 Nano shade(s), and it will act as a Zigbee 3.0 mesh router to allow large system designs. When used with a compatible Coordinator such as LinkPro Z, this Edge Router allows users to control our shading and screen products from any smartphones, tablets, or voice assistants such as Alexa. It utilizes the latest versions of Zigbee 3.0 and was designed to replace a non-Zigbee AC outlet in the home or office space. Works with the TaHoma and other SI Apps which are available for free on both Google Play and the App Store.


Find Local Dealer
Call SI Support
Call
512-832-6939
M – F, 8AM – 6PM
SI Support
Support
We're here to help with any
questions or problems.
Visit Support
Contact SI Support
Contact
Email our support team with any questions or problems.
Contact Support

Build your Zigbee 3.0 Mesh!

Professional Zigbee 3.0 Smart Outlet with Edge Routing – Build and extend your network and add a control point for a fan or lamp.

Build your Zigbee 3.0 Mesh!

Professional Zigbee 3.0 Smart Outlet with Edge Routing – Build and extend your network and add a control point for a fan or lamp.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Voice

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Touch

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Voice

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Touch

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Smart Outlet Spec Drawing

Power

125VAC, 60Hz

Total load for both outlets

(Max) 1800W@15A (Resistive)

Load for Zigbee-controlled outlet

(Max) 1000W incandescent, 1/2HP motor,
1800W@15A (Resistive) or 3.75A LED/CFL

Dimensions

1.92’’ D x 1.75’’ W x 4” H
(48.76mm x 45.45mm x 101.6 mm)

Parts in the Box

Smart Outlet, Screws (2), Installation Instructions.
(Trim plate not included)

Operating Temperature

32-104° F (0-40° C)


Installation Best Practices

7m between any Zigbee nodes* Per room, 1 unit – up to 7 shades (every 7th shade add an additional unit).

Radio Frequency

2.4 GHz

Works with
  • Link Pro Z
  • TaHoma
  • Situo remotes
  • Nano® Shades
  • TaHoma App
  • Smart Plug
