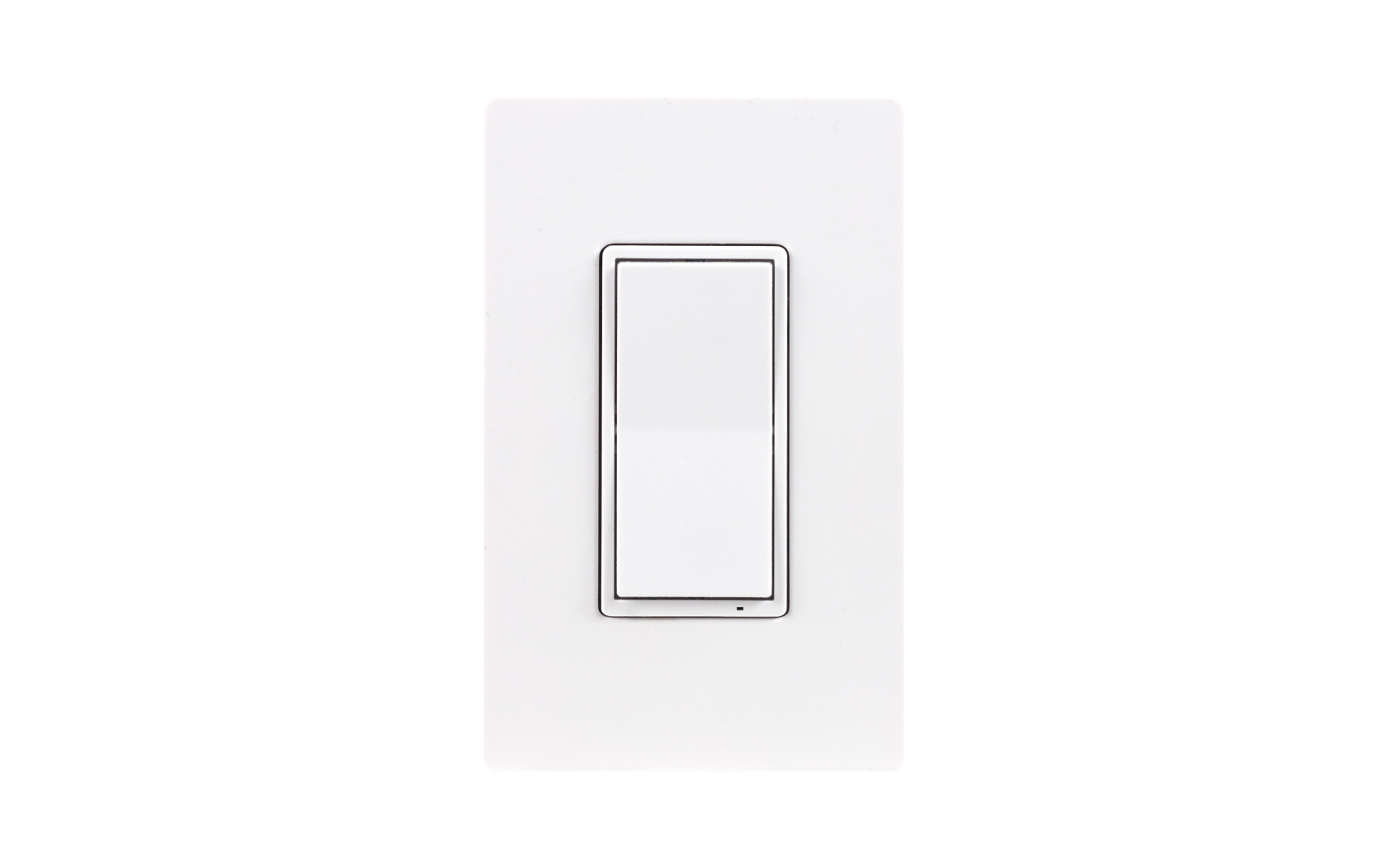

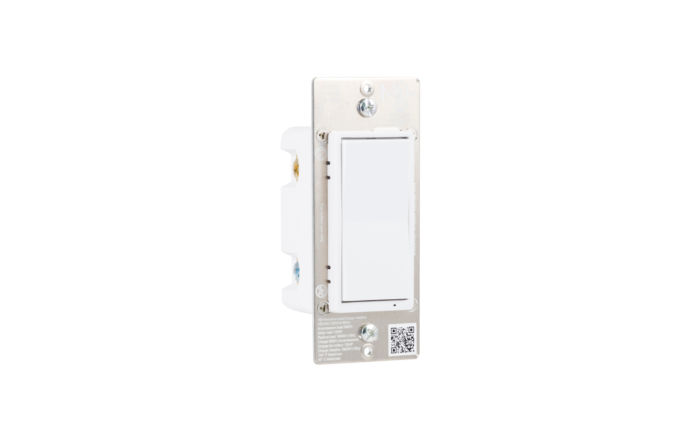

Smart Light Switch

$250.00

Smart Light Switch is a Zigbee 3.0 Edge Router for use in an SI shade or screen project. This product is another option for building a robust and reliable Zigbee 3.0 mesh. Each room with Zigbee shades will need a minimum of one Edge Router per room, and in the case of many shades in the same room, one additional unit for every 8th shade in the same room. This device is both a repeater and a Smart Light Switch that allow the user to control any lighting load with the TaHoma App. The device can be bound with other Zigbee 3.0 devices such as a Zigbee 3.0 Nano shades when used with a TRO.Y. Edge Routers such as this Smart Light Switch provide the control mesh which allows users to control our shading products from any smartphones, tablets, or voice assistants such as Alexa or Google. It utilizes the latest versions of Zigbee 3.0 and was designed to replace a non-Zigbee Light Switch in the home or office space. The Smart Light Switch works with the new TaHoma App which is available for free on both Google Play and the App Store. This Switch will not control or move shades.


Find Local Dealer

512-832-6939
M – F, 8AM – 6PM

We're here to help with any
questions or problems.
Visit Support

Email our support team with any questions or problems.
Contact Support

Build your Zigbee 3.0 Mesh!

Professional Zigbee 3.0 Smart Light Switch with Edge Routing – Build and extend your network and add a control point for a fan or lamp.

Build your Zigbee 3.0 Mesh!

Professional Zigbee 3.0 Smart Light Switch with Edge Routing – Build and extend your network and add a control point for a fan or lamp.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Zigbee 3.0

Unlike legacy two-way RF systems, Zigbee® 3.0 is a self-healing mesh network protocol, enabling robust and secure communication.

Voice

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Touch

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Voice

Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.

Touch

When physical control is desired, we offer a wide array of wired and wireless control interfaces.

Automation

Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.

Smart Light Switch Spec Drawing

Power

120v AC, 60Hz

Load

(Max) 960W incandescent, 1/2HP motor, 1800W@15A (Resistive) or 3.75A LED/CFL

Operating Temperature

32-104° F (0-40° C)

Radio Frequency

2.4 GHz

Dimensions

1.13’’ D x 1.75’’ W x 2.63” H
(28.7mm x 44.5mm x 66.8 mm)

Parts in the Box

Smart Light Switch, Screws (2), Paddles (2, White and light Almond options) Installation Instructions (Trim plate not included)

Installation Best Practices

7m between any Zigbee nodes* Per room, 1 unit – up to 7 shades (every 7th shade add an additional unit).

Works with
  • LinkPro Z
  • TaHoma
  • Situo remotes
  • Nano® Shades
  • TaHoma App
  • Smart Plug
  • Smart Outlet
