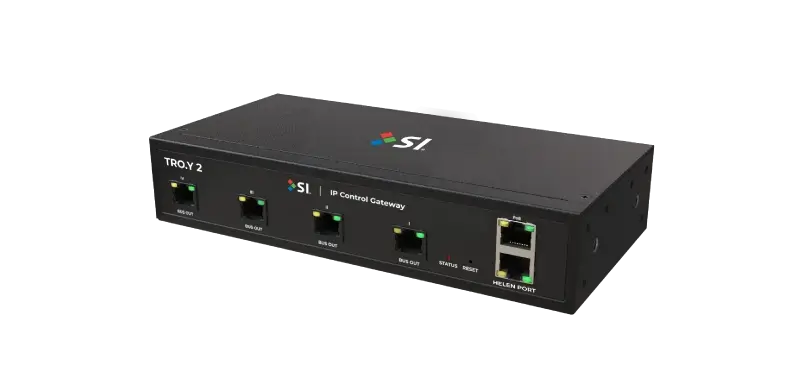

TRO.Y™

Wired & Wireless* IP/PoE Control Gateway

* when paired with a wireless gateway

TRO.Y™ is an expandable IP based PoE automation and control gateway for 485 shading systems that enables control over IP and 232 from all popular systems such as Control4, Crestron, Lutron, and many more soon. This is a full-featured gateway that provides remote access for easy servicing and built-in web server for commissioning and motor limit setting. Works with 485 screens and shades and can also control Zigbee and RTS motors when paired with a wireless gateway such as LinkPro Z or others. Plenum rated and rack mounting.

Spec Sheet

PDF [397.6 KB]

3 Motorized, 5 Motorized, Pocket, Solo 3, Solo 3 Indoor, Solo 3 Outdoor, Zen 2, Accessories, Solo 2, Solo Pro 2, Nano Box, Nano Roll, Veil, Zen Box, Zen Roll, Connectivity Tags: 485, Accessories, Connect, Connectivity, Controls, DecoFlex, Fontus, IP/RS232/RS485, Janus, Jopplin, moab, Nano Box, Nano Roll, Optional, Pocket, Power Supplies, Screen, Shade, Solo 2, Solo Pro 2, Suite XVI, Veil, Wired, Wiring, Zen 2, Zen Box, Zen Roll

Learn More About Our Wired Tech

Find Local Dealer

Call

512-832-6939
M – F, 8AM – 6PM

Support

We're here to help with any
questions or problems.
Visit Support

Email

Email our support team with
any questions or problems.
Contact Support

Connect Everything!

Where no motor controller has gone before.

Connect Everything!

Where no motor controller has gone before.

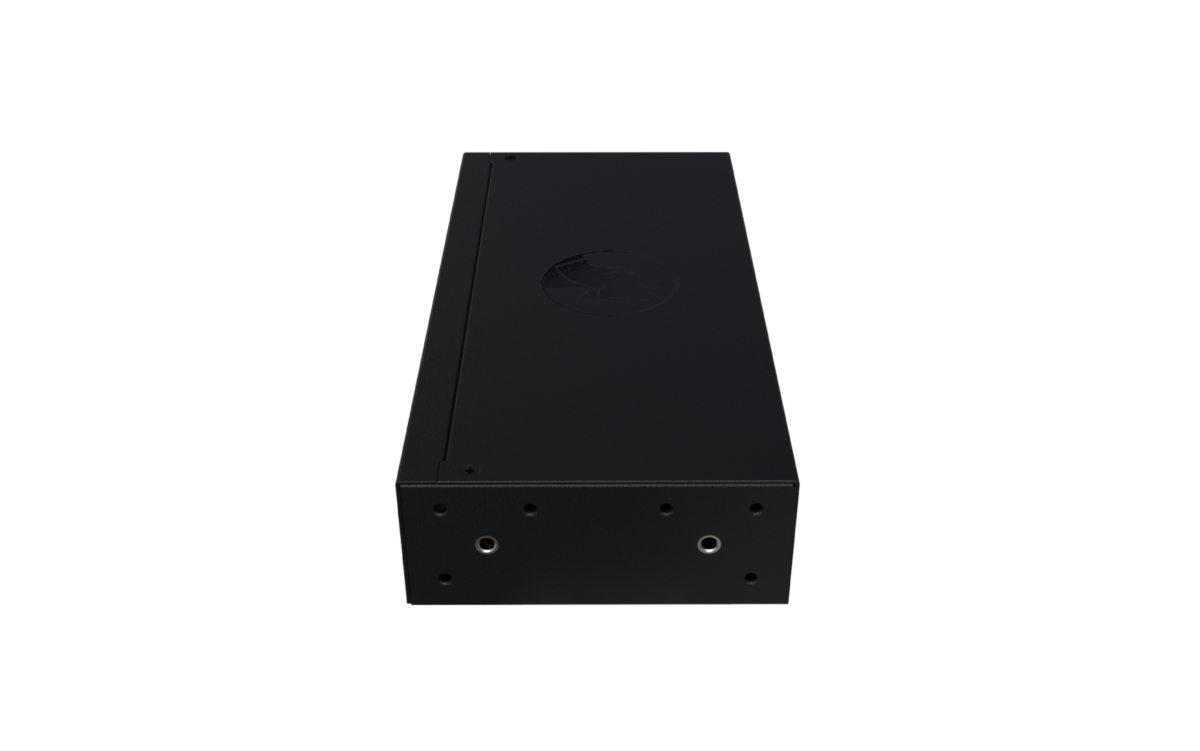

Mounting Options

TRO.Y^™ includes both rack mount ears & din rail brackets which enable mounting in any rack or panel. We also offer 3 enclosures from 14″-40″ & additional bracket options to make installation easy and clean.

Mounting Options

TRO.Y spec drawing

Features

3rd party integration with 485 shades via PoE and RS232
16 Bus power units per port (x4)
Advanced control options for all shade types, RTS and Zigbee via its TLS encrypted link
Can use wired 485 or wireless RTS keypads to control Zigbee shades or screens
Built-in web browser based commissioning, multi-platform compatible (PC/MAC/Mobile)
485 shade, screen and keypad programming
3rd party keypad integration
4 times the processing and bus architecture compared to other 485 gateways
Innovative SI proprietary site files and templates to store and accelerate commissioning
Exclusive assignable node ids for 485 motors saving time and money on 3rd party controls

Power Input

PoE (AT/BT) – 48v DC

Power Consumption

5 Watts

Max. Wiring Distance (485)

200’ per port (4 ports in total)

Max. Wiring Distance (Ethernet)

328’ from the router using standard Cat5e cable

Material (Indoor use only)

Sheet metal plenum rated

Dimensions

8.5’’ L x 4.1’’ D x 1.69” H
(216mm x 105 mm x 43 mm)
1RU/Half Rack compatible

Parts in the Box (#201559)

1 TRO.Y unit, PoE Power Injector, Cat5e Patch Cable,
2 Universal Rack Ears, 1 Rack Mount Fascia, 10
Universal Mounting screws, 2 Din Rail Screws, 1
Long Rack Ear, 1.5 mm Hex Tool, 2 Universal Din Rail
Brackets, 8 Terminal Blocks, 4 Rack Mount Screws
Quick Start Guide

Drivers

AMX^® by Harman
Control4^®
Crestron^® Crestron Home
Crestron^® SIMPL
ELAN
Extron IPCP Pro xi Series
JOSH^®*
Lutron
LOXONE
QSC^® Q-SYS**
RTI XP-8v**
SAVANT
URC**
Utelogy**

Downloads available on Drivers site
*via TRO.Y (C4 or Crestron driver)
**coming soon

Works with

Nano™ Shades
Zen® Shades
Solo Pro 2 Screen
Motorized 3 / 5 Screens
Decoflex keypads
Janus
Fontus
Duocoup
LinkPro Z
TaHoma
Situo remotes
RTS Receiver (RTS to 485)
Smoove keypads
Telis remotes
Solo remote
Connect

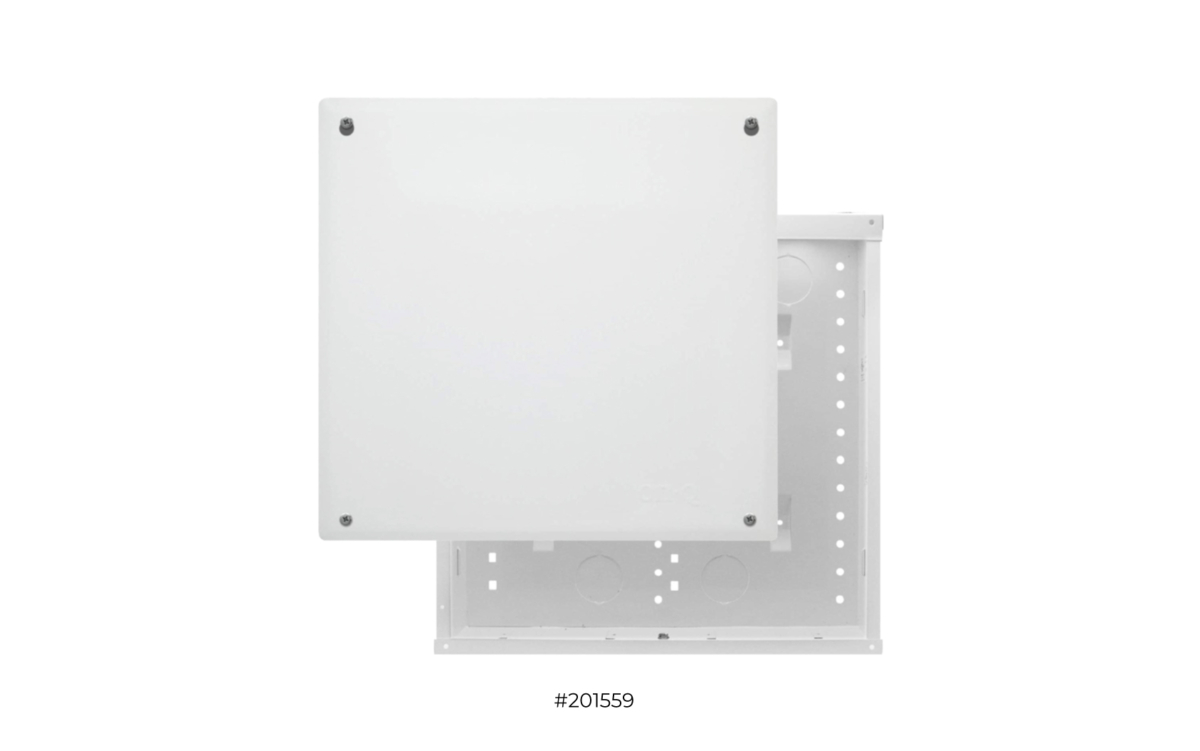

Jopplin enclosure kit
