5 Motorized

This is How We Roll

The workhorse of motorized. The 5 Series Motorized screen from SI was built from the ground up to include the features our customers requested most often.
  • More

    Tab-Tensioning System

    Our tab-tensioning system uses computer controlled cutting systems to cut the tabs into the screen material, instead of adhered additional material to the screen which can result in lines or imperfections in the viewing surface.

    Close
  • More

    Advanced Material Options

    All of our PVC based materials such as Slate (ALR), Pure, and 360, as well as acoustic variations. We also offer Maestro, our woven AT material as an option.

    Close
  • More

    Case Mount & Color Options

    5 Series Motorized can be configured with an external mount, which is available in white or black options, for mounting to a wall or ceiling as well as a flush cassette for mounting into the ceiling for a hidden appearance.

    Close
ALR

Contrast Enhancement

Multi-purpose rooms always have some level of ambient light in the environment. By rejecting 65% of that light, Slate® allows you to leave the lights on when watching the game, movies, playing video games, and more.

* Black Diamond screen materials are not available in 5 Series Zero Edge.

features

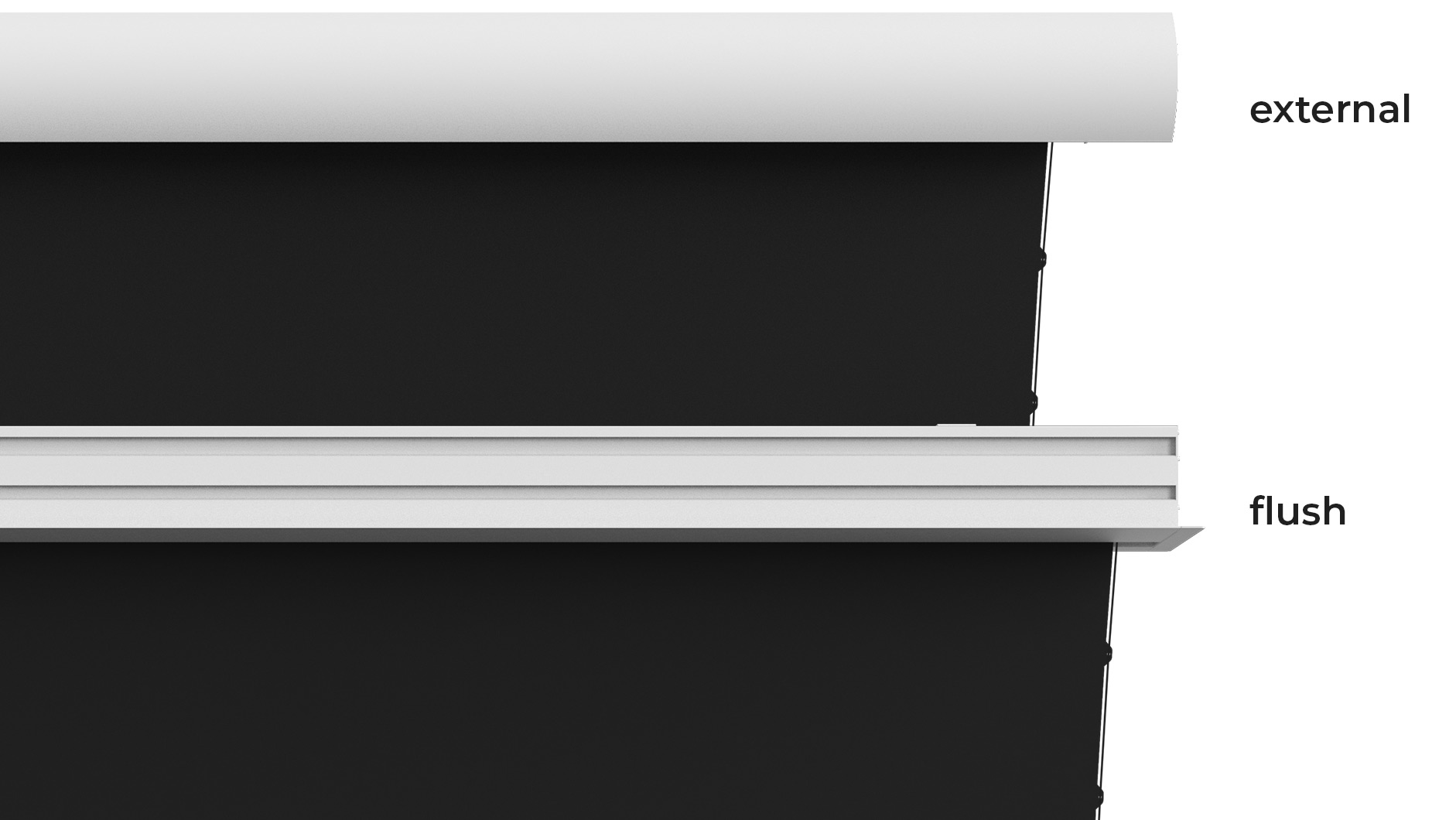

Multiple Case Options

For the best motorized big screen experience, our 5 Series Motorized workhorse is available in flush (in ceiling) or external (wall) mount options, giving our users the flexibility to install their system in a wide variety of locations.
External
Flush

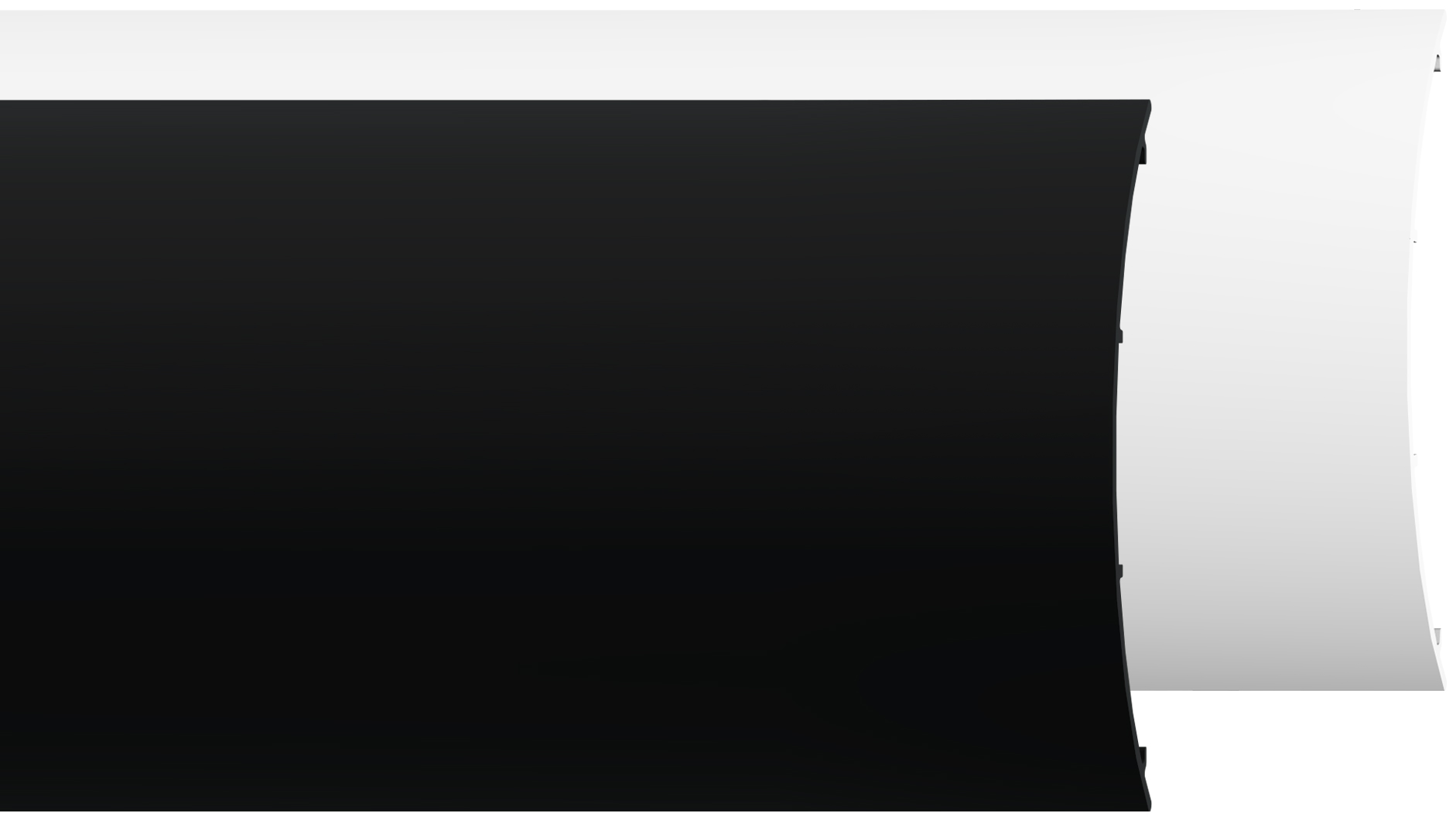

Color

Most popular projectors are available in white or black options. We matched these offerings with these same color options on our external mount 5 Series Motorized screen.

One Size Fits All

Our 5 Series Motorized screens are available in sizes up to 200″ diagonal in 16:9, and can be built in 1-inch increments with many different possible aspect ratios such as 16:9, 16:10, and 2.35:1. Whatever
200″ in 16:9 Up to a 200″ image in 16:9 with 1-inch increments.
16:9, 16:10, & 2.35:1 Multiple aspect ratios & even custom options.

Connectivity

We include low voltage trigger, IR remote, and wall switch standard with every 5 Series Motorized that we ship. For customers looking for even more connectivity, we also offer the option of RS232/485.
Wall Switch Conveniently located and finished look.
IR Remote Operation from anywhere visible by the IR eye.
LV Trigger To be triggered with control systems.
RS232/485 For a deeper level of control.
Materials

Available Materials

We offer a wide variety of screen materials for different applications and uses. For a full list and specs of our screen materials you can compare all of our materials here:

Compare Materials
Slate 1.2
Gain
1.2
ALR
65%
Acoustic
No
Learn more
Slate .8
Gain
1.2
ALR
65%
Acoustic
No
Learn more
Pure White
Gain
1.3
ALR
10%
Acoustic
No
Learn more
Pure Gray
Gain
.85
ALR
10%
Acoustic
No
Learn more
Slate AT 1.2
Gain
1.2
ALR
65%
Acoustic
Yes
Learn more
Slate AT .8
Gain
.8
ALR
65%
Acoustic
Yes
Learn more
Pure White AT
Gain
1.3
ALR
10%
Acoustic
Yes
Learn more
Pure Gray AT
Gain
.85
ALR
10%
Acoustic
Yes
Learn more
Maestro
Gain
1.1
ALR
10%
Acoustic
Yes
Learn more
specs

Specifications

5 Series Motorized, the workhorse of motorized.
Motor
  • Somfy® Sonesse RS485 Quiet Motor
Case Specifications
  • Flush or external configuration
  • White or black color options for external configuration
  • Top side recessed electrical control cable access
  • Up to 48-inches of black-drop
  • Ships with wall switch, IR remote, and low voltage trigger standard
Sizes*
  • Max: 200” (5080mm) in 16:9
  • Max: 200” (5080mm) in 2.35:1
  • Available in 1-inch increments

* All sizes are measured diagonally. Some materials may be limited in size. All dimensions are listed as seamless.

Aspect Ratios
  • 16:9 / 16:10 / 2.35:1
Materials
  • Slate / Slate AT / Pure / Pure AT / Maestro
Installation / Adjustment
  • Drop is adjustable in the field.
  • Case can be shipped and installed separately.
