SilenTrac Limit Setting Overview #
This guide demonstrates how to properly set the open and close limits on your SilenTrac drapery system for Current Luxury applications.
Info: Proper limit setting ensures your drapery operates smoothly and stops at the correct positions without overtravel.
Step-by-Step Limit Setting Process #
Access the programming mode on your SilenTrac system as shown in the control interface
Navigate to limit settings using the system menu

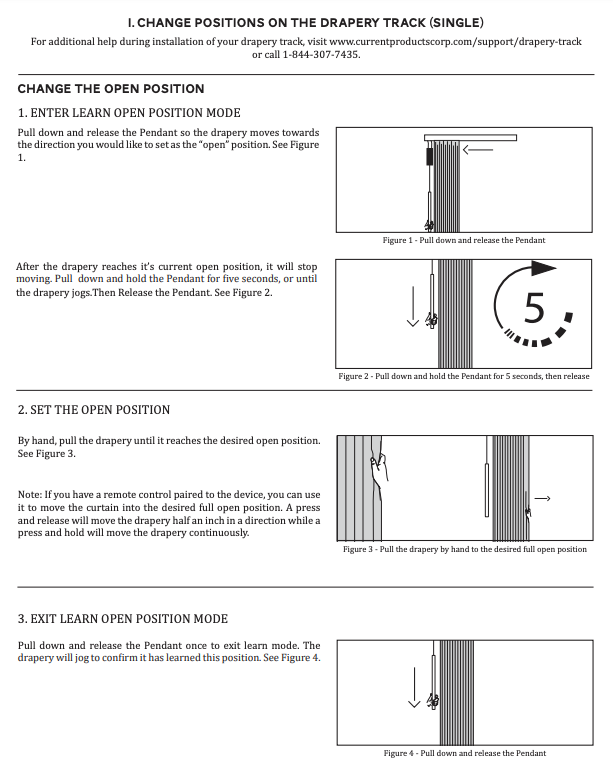

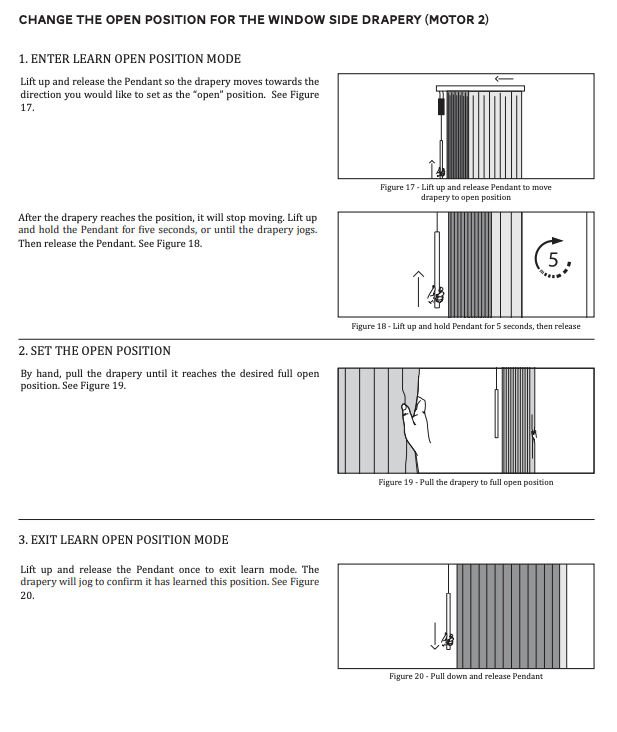

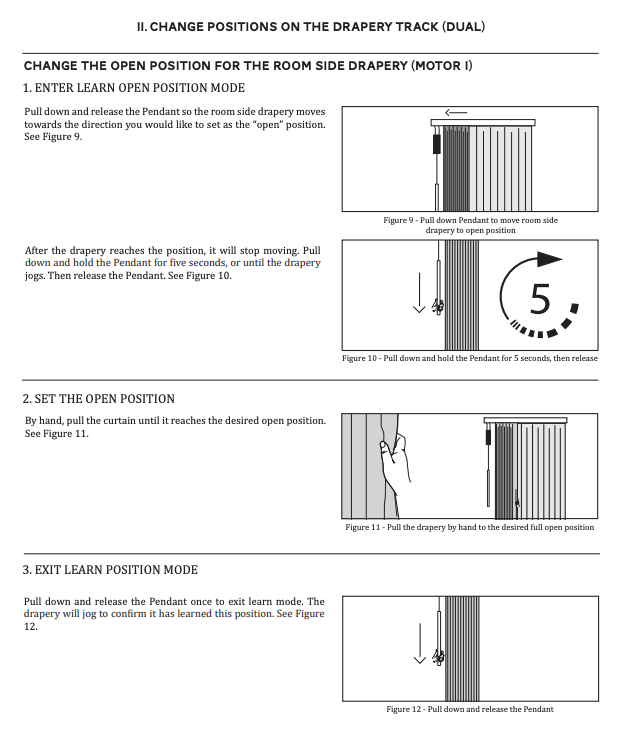

Configure the open position limit by positioning the drapery and saving the location

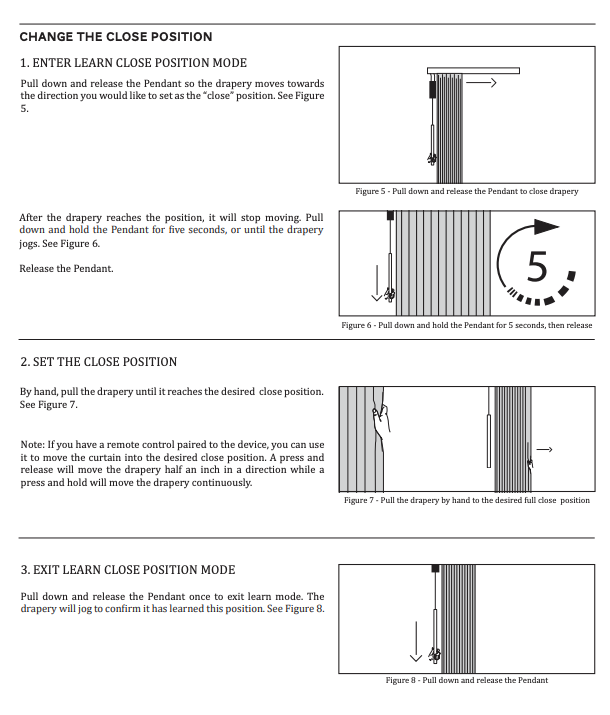

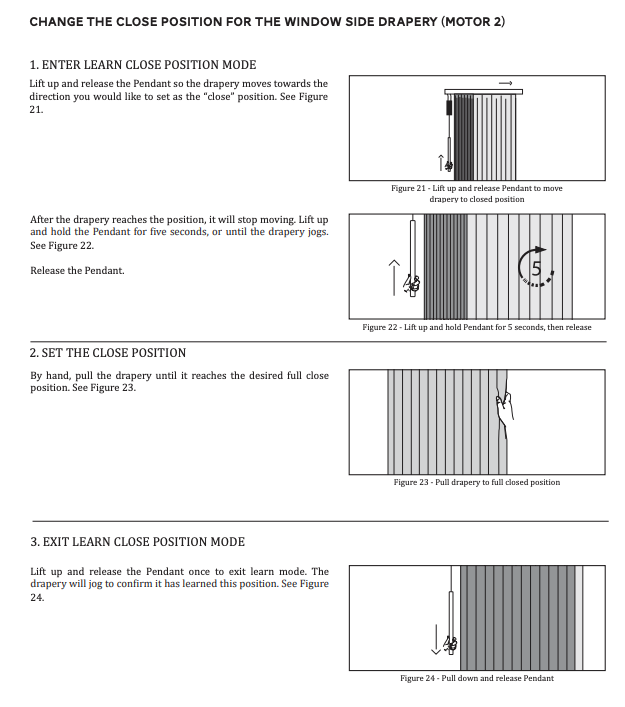

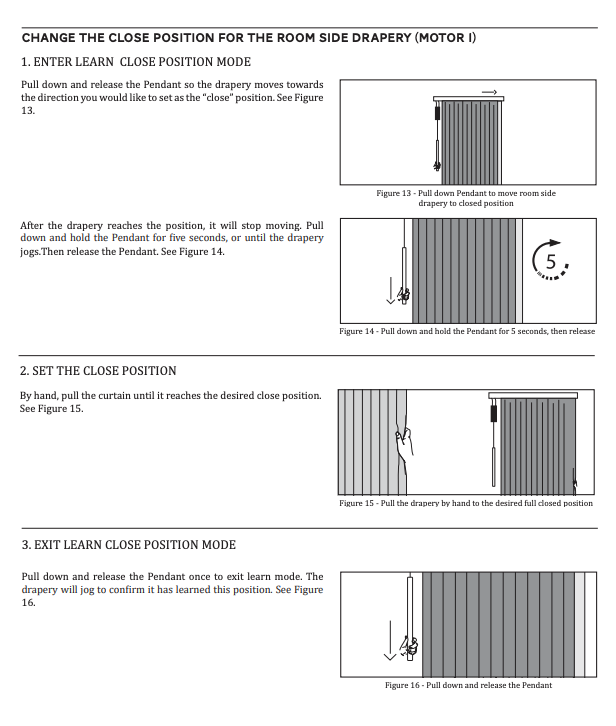

Set the close position limit following the same procedure for the closed position
Confirm and save the limit settings to complete the programming sequence
Test the programmed limits by running a full open/close cycle to verify proper operation
Tip: Always test your limits after programming to ensure the drapery stops at the desired positions without binding or overtravel.
