Nano Pocket: Coupled Shade Side Channel Installation Guide

Complete guide to our precision-engineered Nano shading solutions

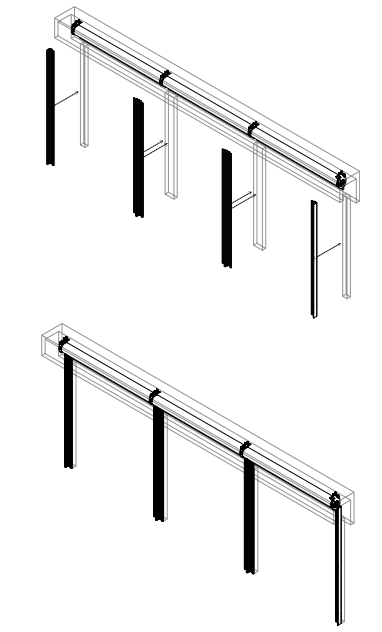

Step 1: Side Channel Install

  • Align the right face of the Side Channel with the right face of your bracket.

  • Repeat the same for the left side.

Two isometric diagrams comparing short and long Nano side channel panel configurations with vertical drops

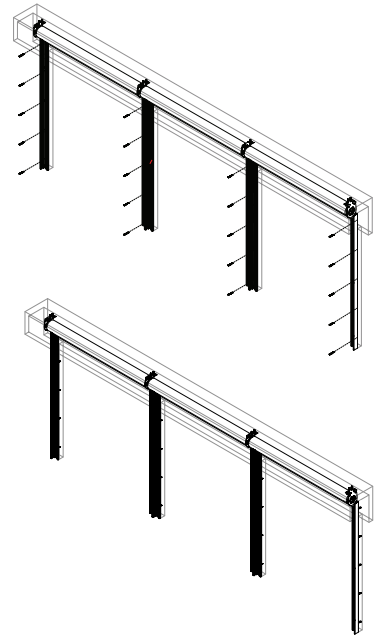

Step 2: Side Channel Install

  • Pre-Drill Holes

  • Install screws in place, through the pre-drilled holes.

Two isometric diagrams showing Nano side channel installation with screws and bracket alignment, top and bottom views

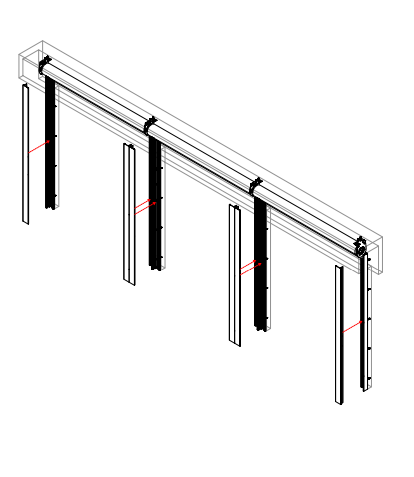

Step 3: Side Channel Install

  • Install covers for each Side Channel.

  • Use provided tool, or a rubber mallet to snap covers into place.

Four Nano side channels hanging from ceiling-mounted track rail, with red indicator arrows marking alignment points
