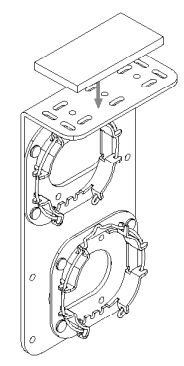

Step 1: Leveling Shims (Optional) #
Used if the window frame is out of level.
Connect to shade brackets before installation
⚠️ Warning: Do not use more than 2 leveling shims per bracket.
Step 2: Installing the Brackets #

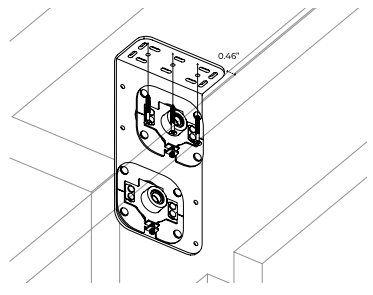

Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
The bracket to bracket width should be the width that the band was ordered at.

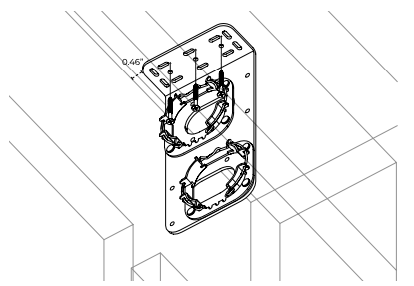

Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
The bracket to bracket width should be the width that the band was ordered at.
Once the brackets are secured with the screws, we are ready to install the roll.

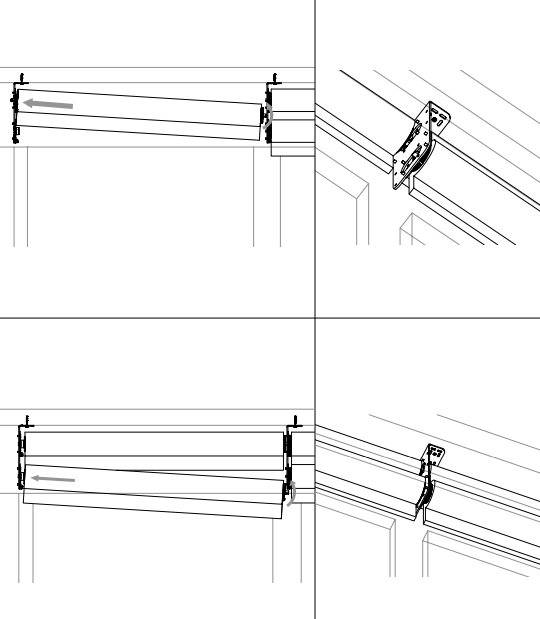

Step 3: Installing the Rolls #

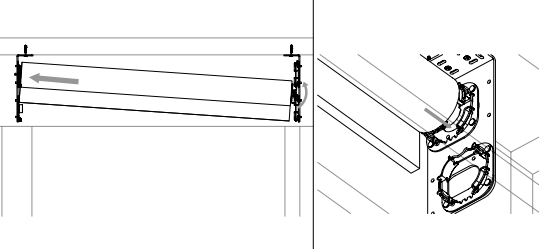

To install the roll: First, insert the idler side of the roll in the idler side bracket.
Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.
Repeat the previous step for the shades below.
Step 4: Installing the remaining Rolls #

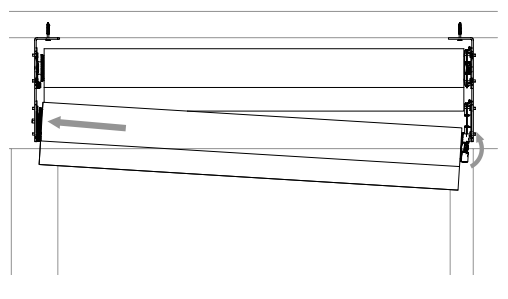

Moving to the next set of Duo shades installation, by inserting the idler side of the roll in the idler side bracket.
Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.
