Projector Placement #
Before beginning frame assembly, plan your projector placement. Mount the projector lens level with the top or bottom of the screen. Do NOT angle the projector or use keystone correction.
Frame Assembly #
Step 1: Prepare Your Workspace #
Clear a clean, flat area large enough for the full frame. Use a drop cloth or soft surface to prevent scratches.
Step 2: Identify Frame Sections #
Lay out all labeled frame pieces. Ensure the LED hole faces down during assembly.
WARNING: The LED hole must face down during assembly.
WARNING: Make sure to insert posts into the frame channel before proceeding. The thicker end slides in.

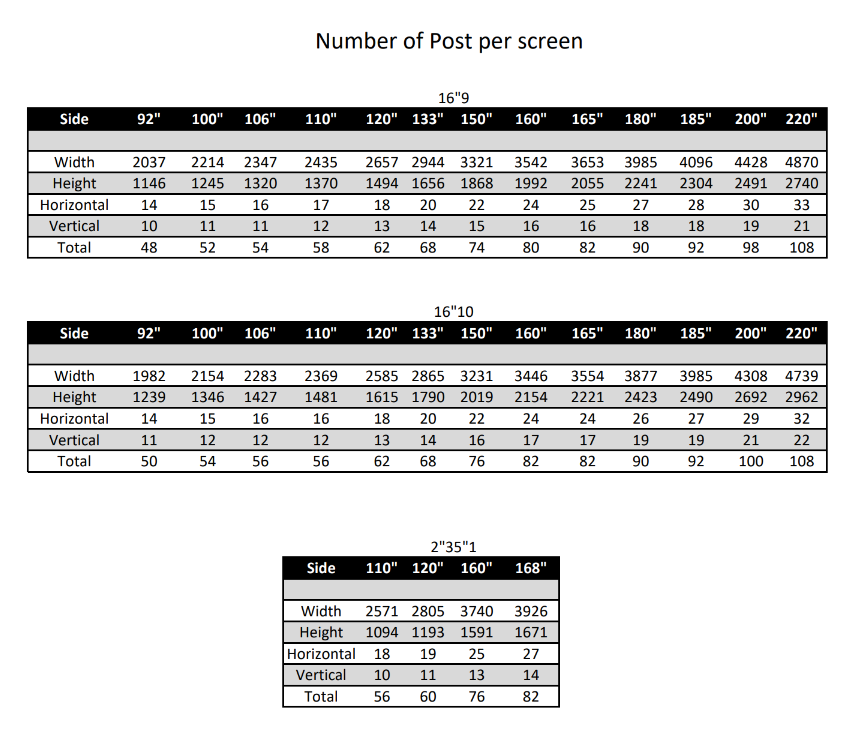

Reference the post count table below for the number of posts required for your screen size:
Step 3: Insert Corner Brackets #

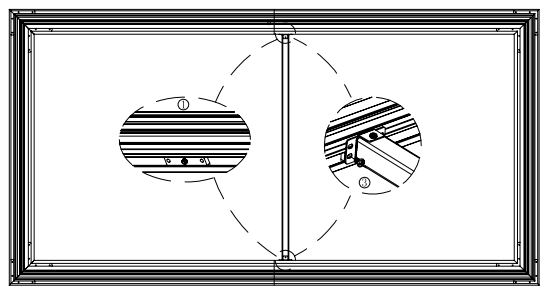

Insert the thin bracket tab into the outer channel and the thick bracket tab into the inner channel.
Step 4: Align Frame Corners #
Ensure corners are flush and at 90 degrees. Loosely tighten the set screws — do not fully tighten yet.
Step 5: Assemble Horizontal Frame Sections #

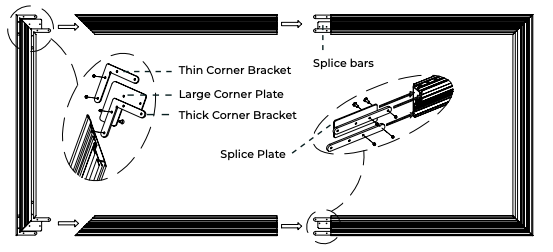

Connect the horizontal frame pieces using the splice plate and countersunk screws. Insert the splice bars to reinforce the joint.
Step 6: Secure Splice from Back (Split Frame Only 120″ +) #
Flip the joined horizontal pieces and secure with set screws from the back of the frame.
Step 7: Align Frame Corners #
Ensure all corners are flush and at 90 degrees. Loosely tighten.
Step 8: Square the Frame #
Measure diagonals corner-to-corner. Must be within 1/8″. Fully tighten once square.
Step 9: Install Vertical Support Bar #
Attach the vertical support bar using the included “T” brackets and channel plates.
TIP: The support bar can be positioned off-center to accommodate a speaker or outlet behind the screen.
Step 10: Flip the screen over and use the tapered screws in the countersunk holes in the 4 corners, and splice if split frame (120″+). #
LED Kit Installation #
Step 1: Prepare for Zigbee #
A Philips Hue Hub is required to control the LED lighting. Set up the Hue Hub and app before powering on the LEDs for the first time.
Step 2: Mount LED Controller #
The LED controller mounts to the pre-installed nuts on the frame. Secure with the included screws.
Step 3: Install LED Strips #
Route the LED strips around the frame channel. Do not kink or fold the strips. Use the included foam pieces at corners. Peel the adhesive backing and press firmly into place.
Step 4: Cut LED Strips to Length #
If the LED strip is too long, cut only at the copper pad marked “CUT HERE”. Do not cut anywhere else or the strip will not function.
The LED kit process is identical for Post Stock and Post Custom screens. Follow the 4 steps above.
Material Installation #
Step 1: Prepare Work Area #
Police the area for any debris that could damage the material. Lay foam sheeting on the floor beneath the frame. Wear clean gloves when handling the screen material.
Step 2: Unroll Material #
Unroll the screen material with the viewing side facing down. You can identify the back side by its slight shine.
Step 3: Prep Black Backer (AT Materials Only) #
For AT (acoustically transparent) materials: center the black backer over the material with the corner pockets facing up and install corner pockets over the frame
From bottom up, you should have the material, backer and then the frame (viewing side down).
TIP: For AT materials, fit the corner pockets over the frame corners like a fitted bed sheet.
Step 4: Position Frame on Material #
With 2 or more people, center the frame onto the material. Keep everything flat and aligned.
Step 5: Attach Material with Posts #

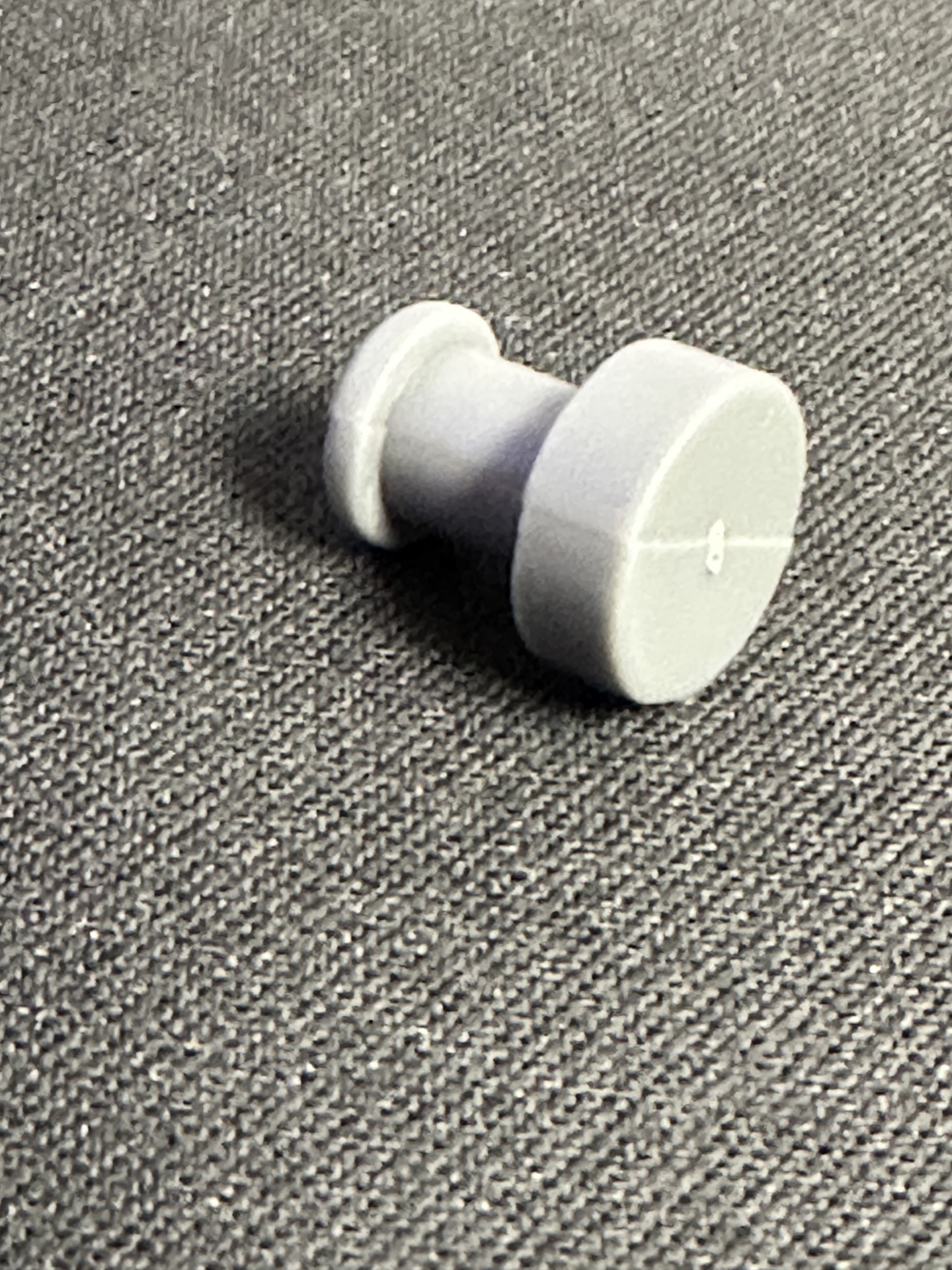

Remove the post retention bumpers. Newer screens will have the posts in the hardware box. Insert posts through the material grommets and into the frame channel.
Important: Follow the attachment sequence diagram
Pull fabric eyelets over the fixing posts:
Two people should pull the fabric eyelets over the fixing lugs at both ends
Attach the corner in the order 1-2-3. See the diagram above.
Two people mount the fabric in sync on both ends and gently lift the frame a bit when mounting the fabric to ensure fabric flatness and alignment with the frame.
Trim Installation #
IMPORTANT (Split Frame Only): Before installing horizontal trim on split frames, splice them together using the included trim splice bars.
Step 1: Install Trim Pieces #
Install the vertical trim pieces first, then the horizontal trim pieces. The horizontal trim includes 4 corner brackets that connect to the vertical pieces.
Step 2: Secure Corners #
At each corner, install the set screws. Use two 1/4-20 x 1/4″ screws per corner to lock the trim pieces together.
Step 3: Join Horizontal Trim (Split Frame Only) #
For split frames: join the horizontal trim sections at the splice point using four 1/4-20 x 1/4″ screws.
Mounting #
Step 1: Install Mounting Brackets #
All screen sizes use only 2 mounting brackets. Position them approximately 6 inches to 1/3 of the screen width from each edge. Secure to wall studs or use appropriate anchors.
Step 2: Prepare for LED Power #
Before mounting, pull the bottom of the frame away slightly to manage LED power cables. Route cables to your power source location.
Step 3: Mount the Screen #
With 2 or more people, hang the screen on the wall brackets. Verify the screen is level and secure all fasteners.
Flown Kit (Optional) #
Ceiling Mount Installation (4 Steps) #
Step 1: Determine Mounting Locations #
Position ceiling mounts approximately 6 inches to 1/3 of the screen width from each edge, matching the screen bracket locations.
Step 2: Anchor Ceiling Mounts #
Secure ceiling mounts to joists, beams, or other structural support. The mounts must support the full weight of the assembled screen.
Step 3: Feed Suspension Cables #
Thread the suspension cables through the Griplock mechanism on each ceiling mount.
Step 4: Adjust Height and Leveling #
Pull the cable through the Griplock to raise the screen. Press the release button to lower. Adjust both sides until the screen is level at the desired height.
