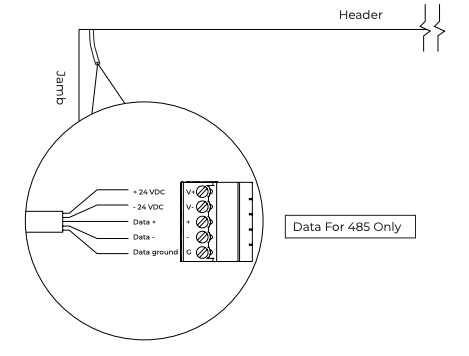

Step 1: Terminating Wires #
Terminate pre-wire with the supplied terminal block.
Step 2: Mounting Brackets #

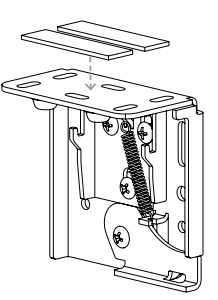

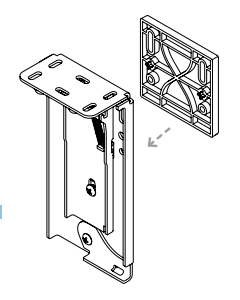

✅ Important: Spacer Blocks – used to clear an obstruction in the fabric path.
Connect spacer blocks to shade brackets before installation.
Do not use more than 4 spacer blocks per bracket.
✅ Important: Leveling Shims – used if the window frame is out of level. the fabric path.
Connect to shade brackets before installation.
Do not use more than 2 leveling shims per bracket.

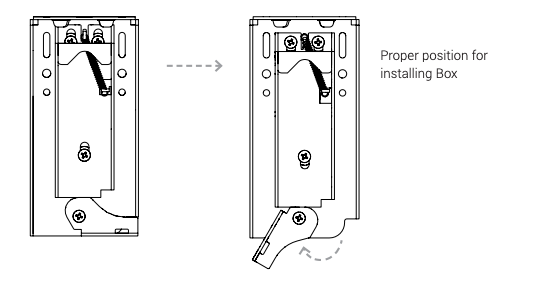

Make sure the wall bracket lever is down (may already be down).
If using RS-485 motors

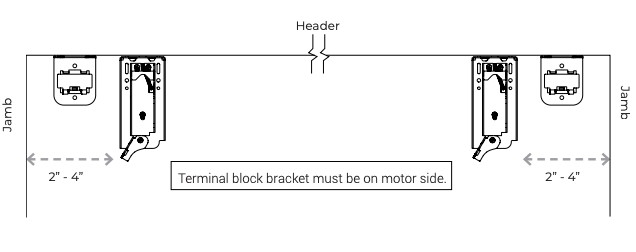

Install terminal block bracket between jamb and wall bracket on the motor side using the supplied screws
Step 3: Installing the Shade #

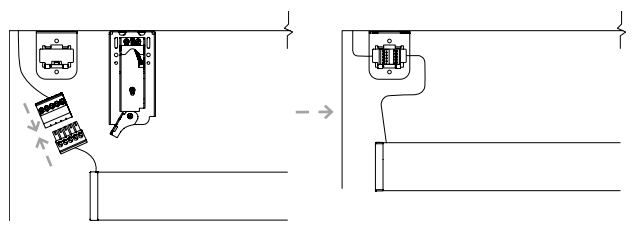

Connect the shade and pre-wire connectors, then snap into the terminal block bracket.

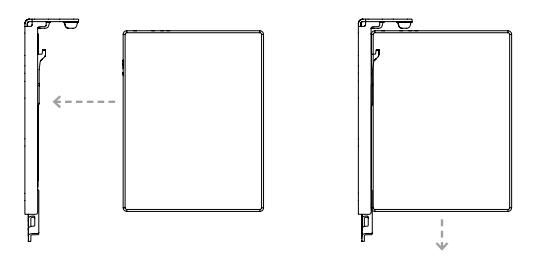

Hang shade onto wall brackets and center in opening.
Use thumb to lock shade in place.

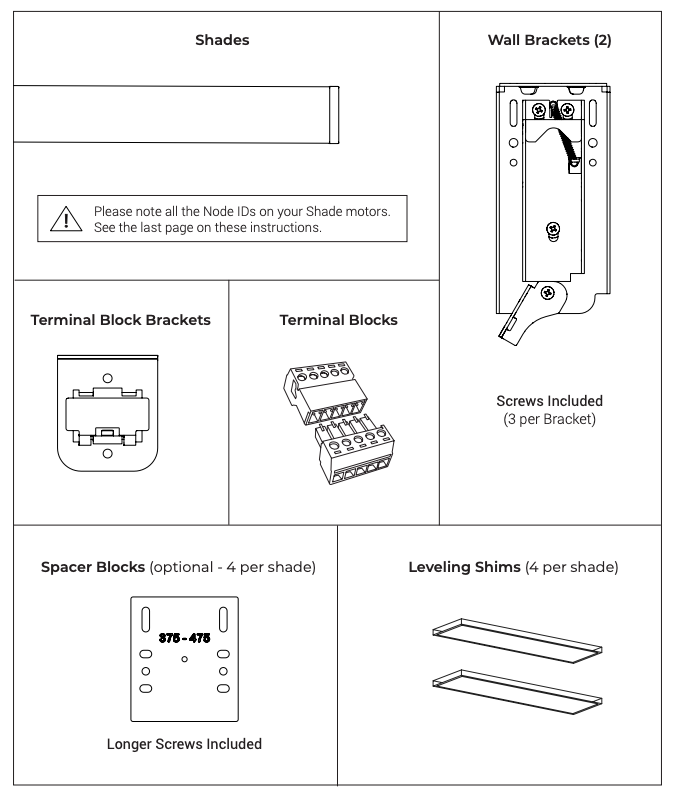

Parts in the Box #
