Welcome to TRO.Y 2 #
This comprehensive guide covers everything you need to know about the TRO.Y 2 IP Control Gateway. Navigate through the sections using the tabs above or use the quick links below.
What is TRO.Y 2? #
TRO.Y 2 is Screen Innovations’ second-generation IP Control Gateway featuring embedded commissioning software, 485 programming, and PoE power. It includes 4 segmented 485 bus lines supporting up to 256 shades.
Compatible Devices #
Helen – Zigbee Coordinator
Pegasus – RTS/RF Transceiver
SI IP Bridge – IP to RS485 Interface for PoE motors
Key Features #
PoE (Power over Ethernet) powered
4 RS-485 ports (64 shades each, 256 total)
Integrated web interface
JSON/Telnet API support for 3rd party integration
Installation #
Mounting Options #
Rack Mounting #

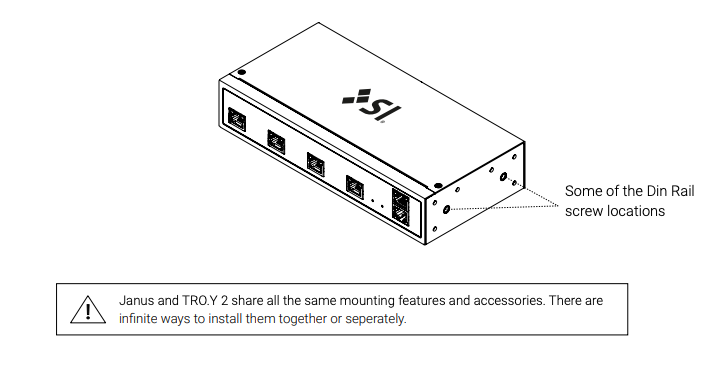

TRO.Y 2 can be mounted in various ways using 10 screw hole locations:

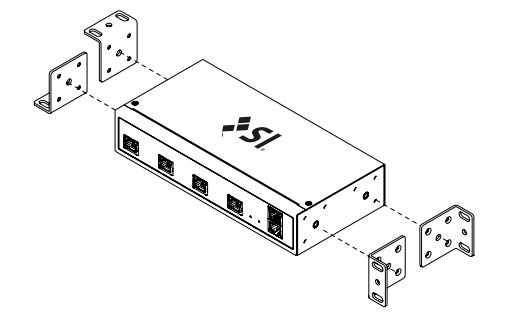

Universal Rack Ear #
The symmetrical hole pattern allows the Universal Rack Ear to be mounted on either side in any orientation.

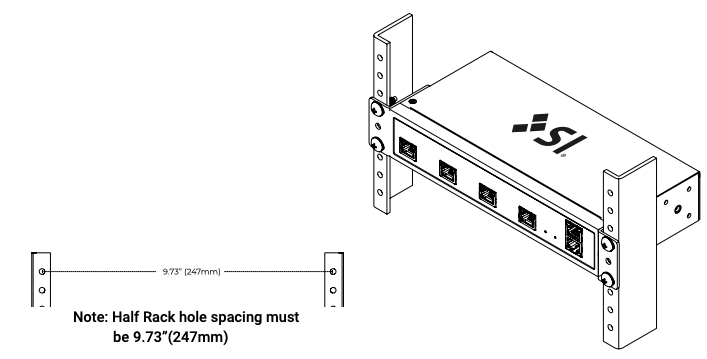

Half Rack #
TRO.Y 2 can be mounted in a standard half rack using 2 Universal Rack Ears.

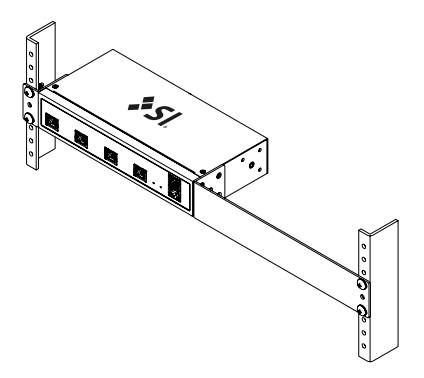

Full Rack (Single Unit) #
A single TRO.Y 2 unit can be mounted in a standard 19″ rack using one Universal Rack Ear and one Long Rack Ear.

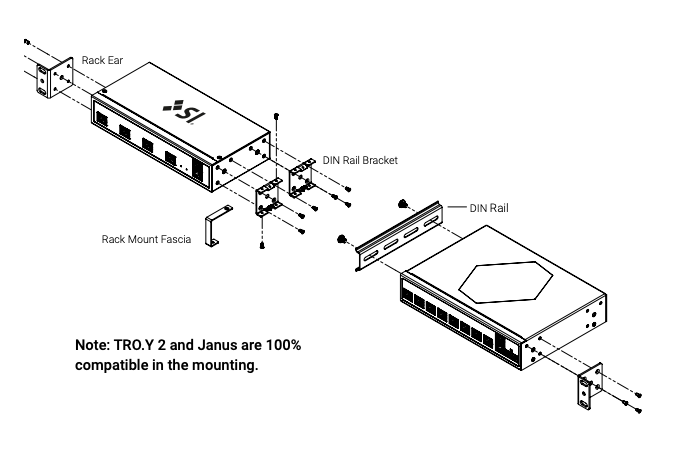

Full Rack (Multiple Units with Janus) #
TRO.Y 2 and Janus units can be coupled together and mounted in a standard 19″ rack.

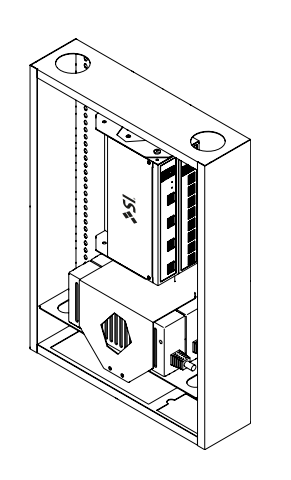

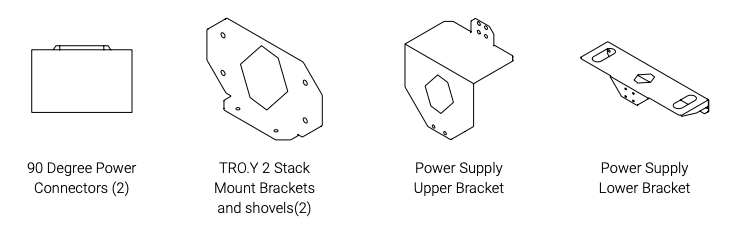

Structured Wiring Box Installation (Jopplin Kit) #
TRO.Y 2 can be installed into nearly any structured wiring enclosure using the Universal Rack Ears or Universal DIN Rail Brackets.

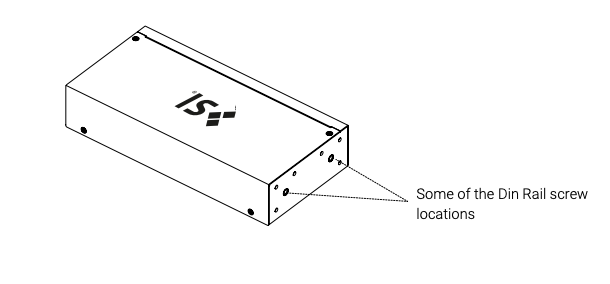

DIN Rail Mounting #
TRO.Y 2 is available in both plenum and non-plenum options. If mounting in a plenum air space, ensure you have purchased one of the plenum rated TRO.Y 2 kits.
Important: The wire length from TRO.Y Helen Port to Helen Coordinator should not exceed 50 feet.
LED Information #
LED | State | Meaning |
|---|---|---|
Power | Solid Green | Device is powered and operational |
Network | Blinking | Network activity |
Status | Red Blinking | Authorization/pairing mode active |
Button Operation #
Short Press: Restart the device
Press and Hold: Enter pairing/authorization mode (red LED blinks)
Connections & Wiring #
WARNING: Do NOT Exceed 48V PoE Power
TRO.Y 2 must not be powered with PoE voltage exceeding 48V. Using higher voltage PoE sources can damage the TRO.Y over time and may void the warranty. Always verify your PoE switch or injector output before connecting.
Power Connection #
TRO.Y 2 is powered via PoE (Power over Ethernet). Connect to a PoE switch or use a PoE injector.
RS-485 Ports #
4 RS-485 ports for connecting wired motors
Maximum 64 shades per segment
Total capacity: 256 shades
Maximum cable length: 200 feet per run
TIA 568B Termination Colors #
Pin | Color | Function |
|---|---|---|
1 | Orange/White | TX+ |
2 | Orange | TX- |
3 | Green/White | RX+ |
6 | Green | RX- |
High Speed Control Port Settings #
BAUD Rate: 4800-56k
Control Bits: 8
Parity: None
Stop Bits: 1
