Niño: Side Channels

  • Use the pre-drilled holes, or use the pre-installed double-sided tape

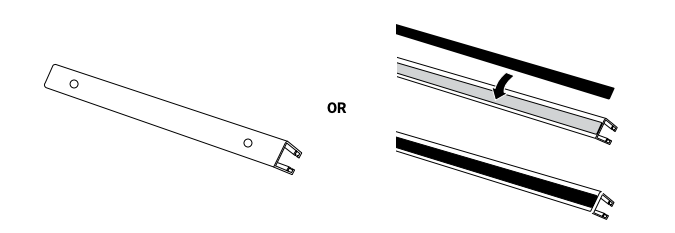

Side channel bracket with pre-drilled holes, or pre-installed 3M tape strip being applied to channel rail

Using the pre-drilled holes #

  • Drill the holes inside the window frame and secure with screws.

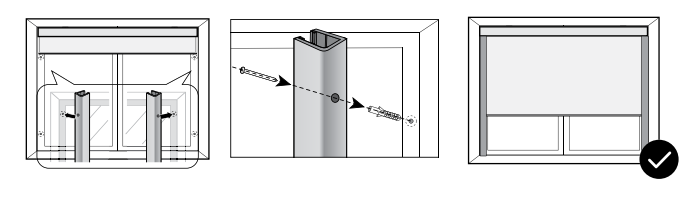

Three-panel diagram showing side channel screw installation: channels positioned in window frame, screw driven into channel, and completed shade installation with checkmark

Using pre-installed 3M Tape #

  • Remove the protective layer from the 3M tape, and then attach to each side of the window frame.

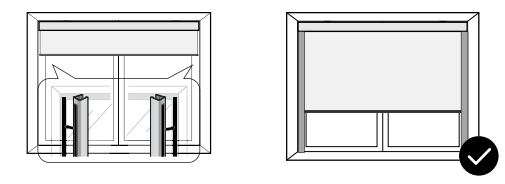

Incorrect inside mount with fabric bunching left, versus correct flush inside mount with checkmark

Installation – Outside Mount #

  • Use the pre-drilled holes, or use the pre-installed double-sided tape.

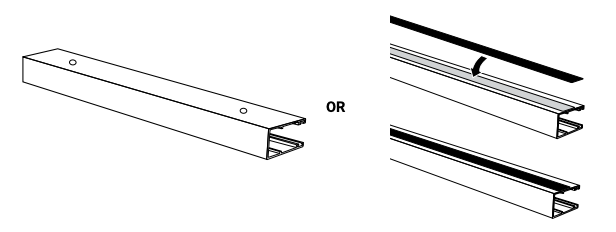

Head rail shown with two mounting options: pre-drilled holes or pre-installed 3M double-sided tape

Using the pre-drilled holes #

  • Drill the holes inside the window frame and secure with screws.

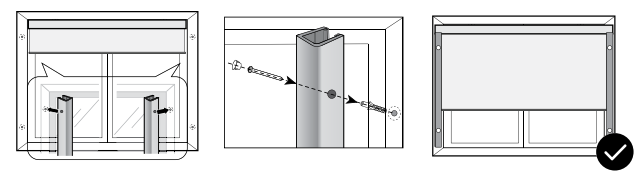

Three-step diagram showing outside mount installation: positioning side channels, securing with screws, and completed shade install with checkmark.

Using pre-installed 3M Tape #

  • Remove the protective layer from the 3M tape, and then attach to each side of the window frame.

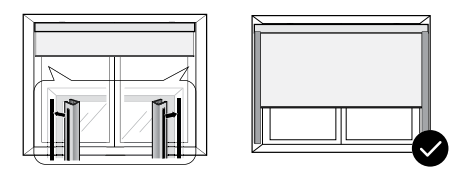

Side brackets positioned inside window frame corners, with correct centered shade result shown
