Nano Box: 375 Box Coupled Shade – Side Channel Installation Guide

Complete guide to our precision-engineered Nano shading solutions

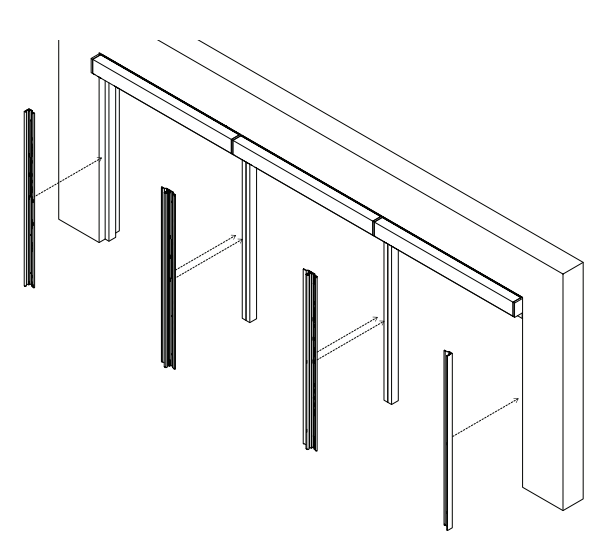

Step 1: Installing Side Channels:

• Align the right face of the Side Channel with the right face of your bracket.

• Repeat the same for the left side.

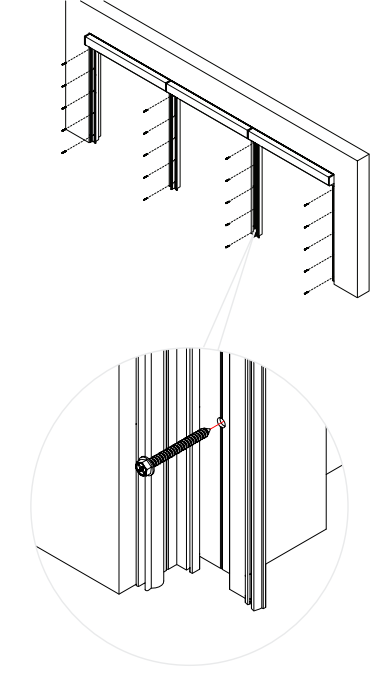

Step 2: Installing Side Channels:

• Pre-drill holes in the side channels

• Install screws in place, through pre-drilled holes.

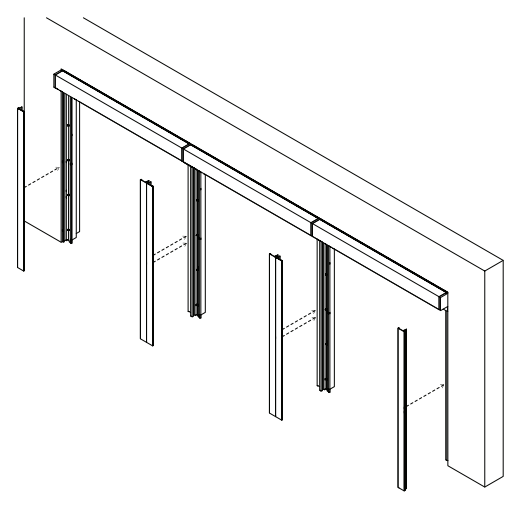

Step 3: Installing Side Channels:

• Install covers for each Side Channel.
