Complete guide to our precision-engineered Nano shading solutions

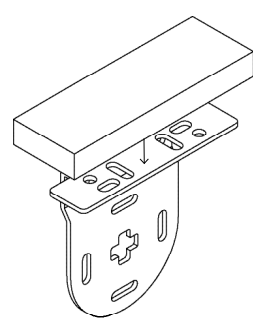

Step 1: Leveling Shims (Optional) #
Used if the window frame is out of level.
Connect to shade brackets before installation
Do not use more than 2 leveling shims per bracket.
Step 2: Bracket Installation #
Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered.
Adjust accordingly

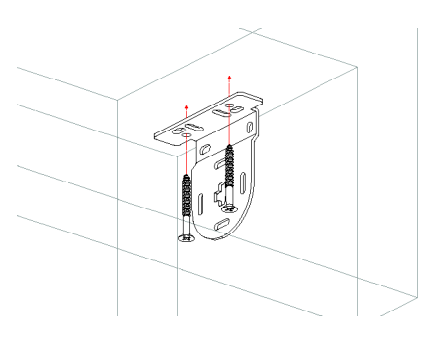

Install the motor side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.

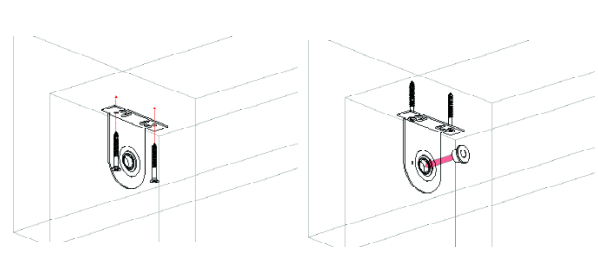

Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the edge of the mounting bracket to the back wall.
Step 3: Installing the Roll #

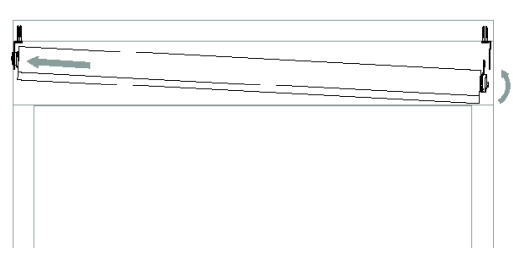

To install the roll: First, insert the idler side of the roll in the idler side bracket.

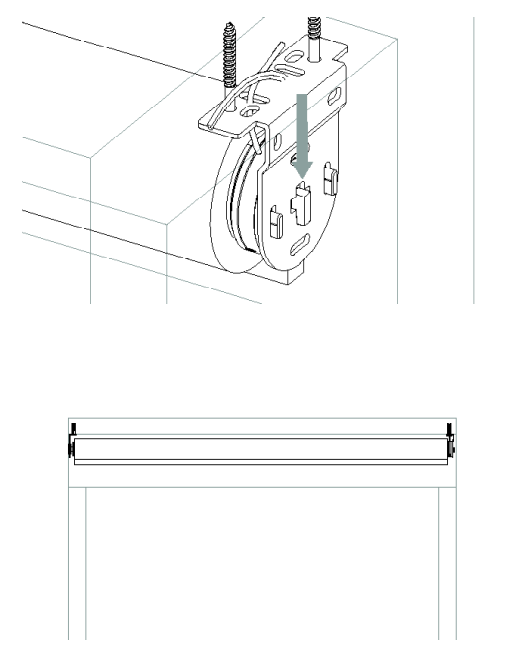

Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.
Clip the motor plate on to the the bracket.

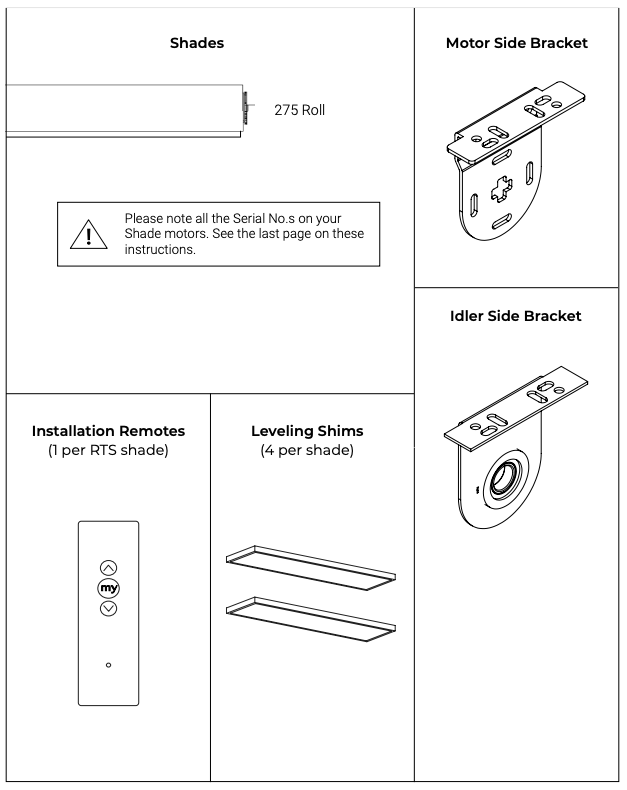

Parts in the Box #
