Installation #
Foam & Bracket Removal #

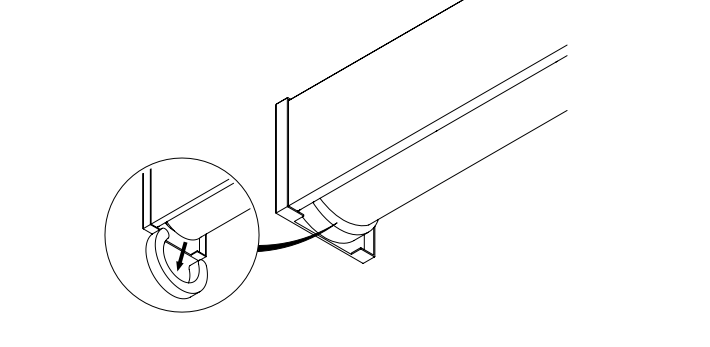

Ensure all shipping foam is removed from both the motor head side and the idler side of the shade. Remove brackets from the shades as shown.

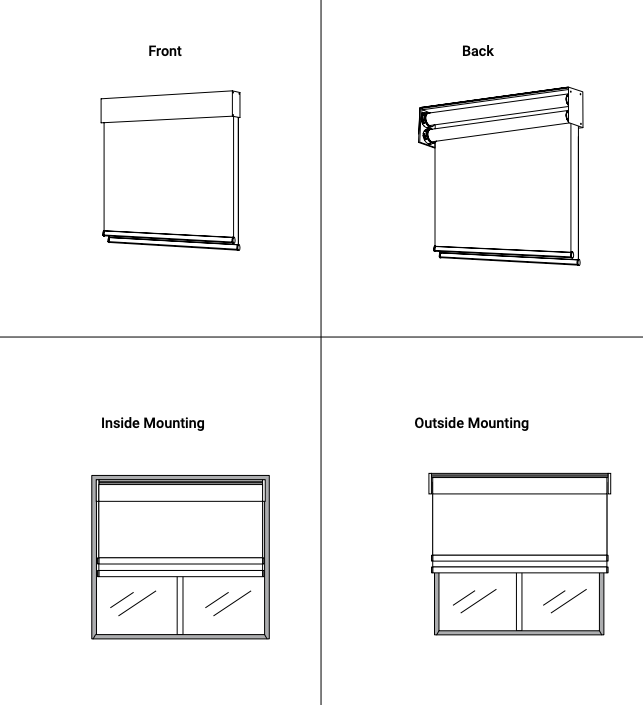

Outside / Inside Mount #
Determine whether your window shades will be outside or inside mount, and follow the corresponding steps.
Inside Mount #
If you opt for an inside mount and your window frame depth allows (The window frame should have a depth of at least 3 inches.), top mount is the optimal choice.
Measuring and Mounting the Brackets #

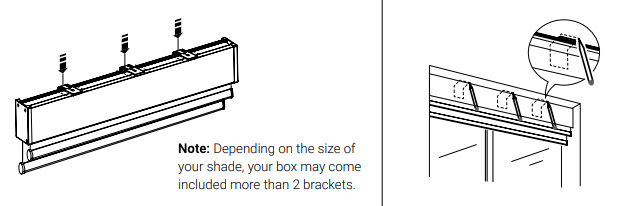

Detach the installation brackets from the shade.
Determine the position for the brackets on the wall and and mark bracket locations with a pencil.
The optimal position for the side caps on both sides to the center of the brackets is 10cm(4″).

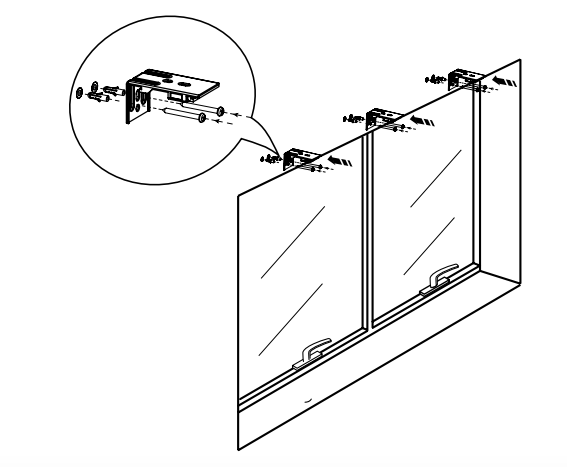

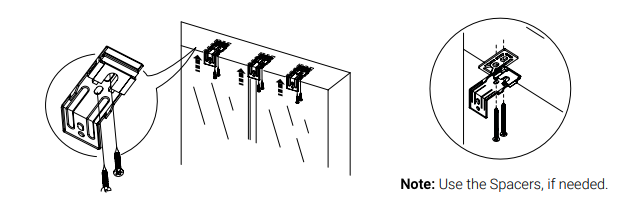

Install the brackets on the wall at the pre-marked locations and secure them in place with screws.

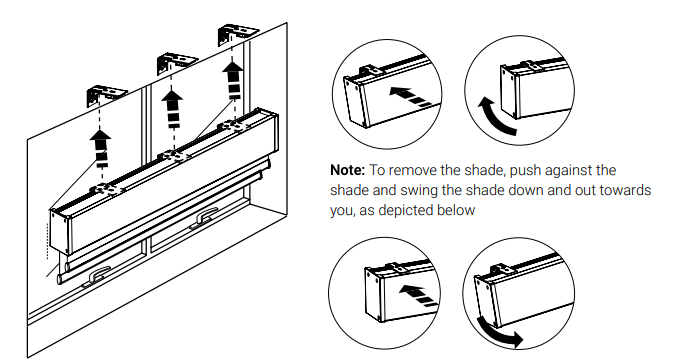

Install the shade #

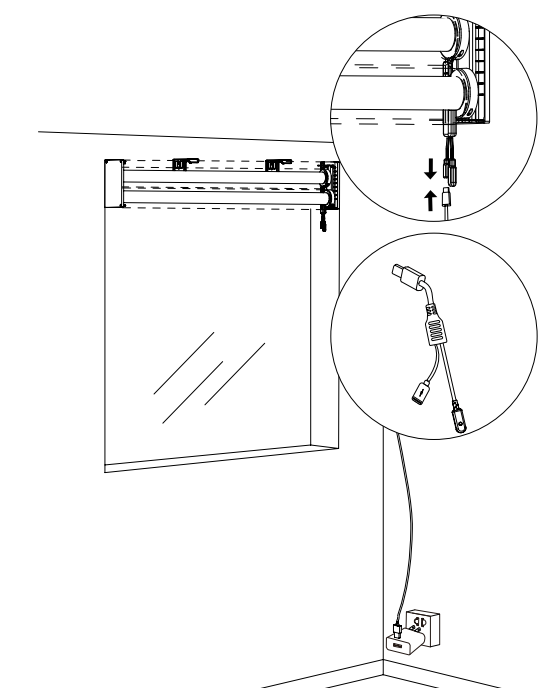

Install the USB-C Charging dongle on the upper/back motor before hanging the shade while it is easier to access
Use a level to check if the shade is horizontally aligned.

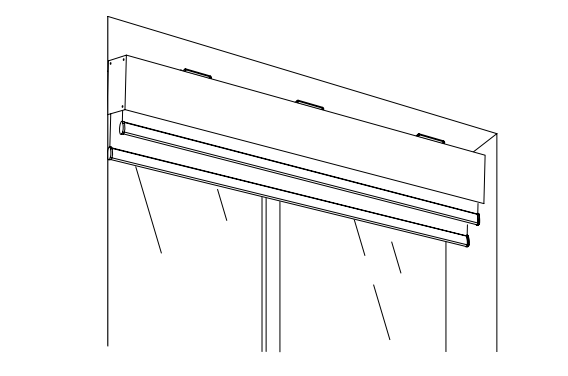

Outside Mount #

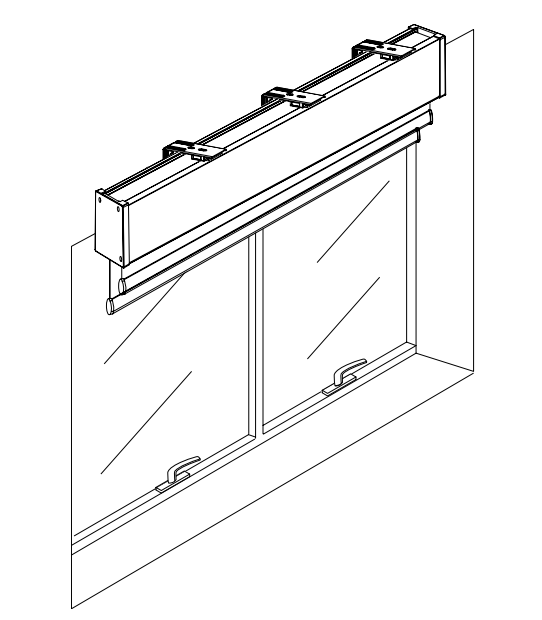

Mounting the Brackets #
Use the appropriate fasteners to securely mount the brackets
Mark the Position of the brackets, and screw them in, making sure they are level.
Use supplied drywall anchors if need be.

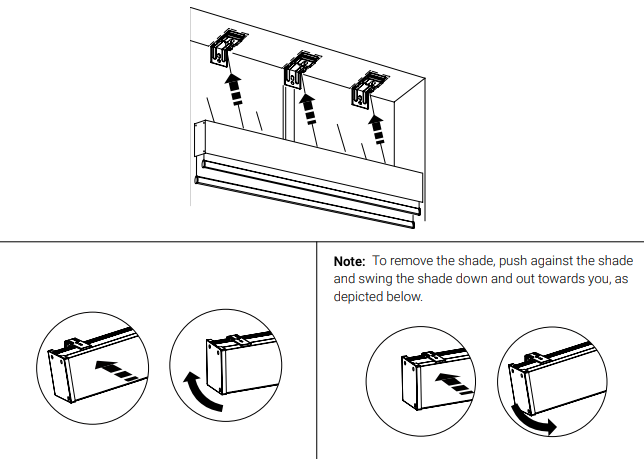

Installing the Shade #
Install the USB-C Charging dongle on the upper/back motor before hanging the shade while it is easier to access
Use a level to check if the shade is horizontally aligned.
The optimal position for the side caps on both sides to the center of the brackets is 10cm(4″).
Setup #
Wake up your Shade
Make sure the shade the shade is Awake buy pressing and holding the Motor Head Button for 1 jog #
#
Adjusting Limits #
Adjusting the Upper limit
Move the shade to its current limit.
Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
Move the shade to the desired location.
Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
Adjusting the Lower limit
Move the shade to its current limit.
Simultaneously press “Down” & “Stop” on the remote until the motor jogs once.
Move the shade to the desired location.
Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.
Change Nino Motor rotation #
With no limits
Press and hold the “Up” & “Down” button on the remote until the motor jogs once.
With limits
Press the programming button on the back of the remote until the motor jogs once.
Simultaneously press the “Up” & “Down” button for one until the motor jogs once.
Changing Motor Speed #
Increasing Speed
Press the programming button on the back of the remote until the motor jogs once
Press the “Up” button c. Press the “Up” button to increase speed, or “Down” to decrease speed. The motor will jog to indicate current set speed.
1 jog level 1
2 jog level 2
3 jog level 3
If motor does not respond, it has reached its maximum speed.
Decreasing Speed
Press the programming button on the back of the remote until the motor jogs once
Press the “Down” button
Press the “Down” button to decrease speed, or “Up” to increase speed. The motor will jog to indicate current set speed.
1 jog level 1
2 jog level 2
3 jog level 3
If motor does not respond, it has reached its maximum speed
Tilt Mode #
To switch between tilt mode (moves an inch with each press) and running modes (moves continuously)
Ensure the shade limits are set, and then follow these steps below:
Using the remote, hold the UP and DOWN buttons for around 5 seconds; the motor will jog once.
After the motor jogs, press the STOP button, the motor will jog once, indicating it has entered Tilt mode, this is a toggle feature.
NOTE: To return to running mode for continuous movement, simply follow the procedure outlined above again.
Factory Reset the Motor #
This will erase limits, and any paired remotes
Push and Hold the Motor Head button for 4 Jogs (Down – Up)

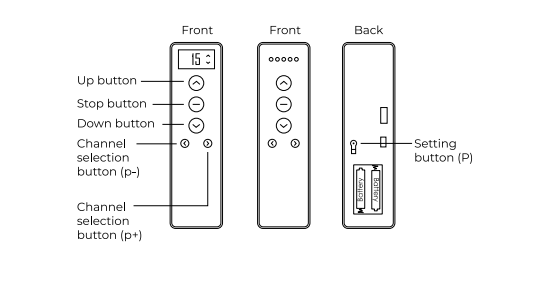

Nino Remote Settings #
Adding a Remote #
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the new Remote control you want to add until the motor jogs once
Removing a Remote #
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the new Remote control you wish to remove until the motor jogs once
Pairing an additional Nino motor to a Remote #
Press the programming button on the head of the motor for 1 jog.
Press the “Stop” button on the remote for 1 jog.
Unpair a remote from a Nino motor #
Press the programming button on the head of the motor for 1 jog.
Press the “Stop” button on the remote for 1 jog.

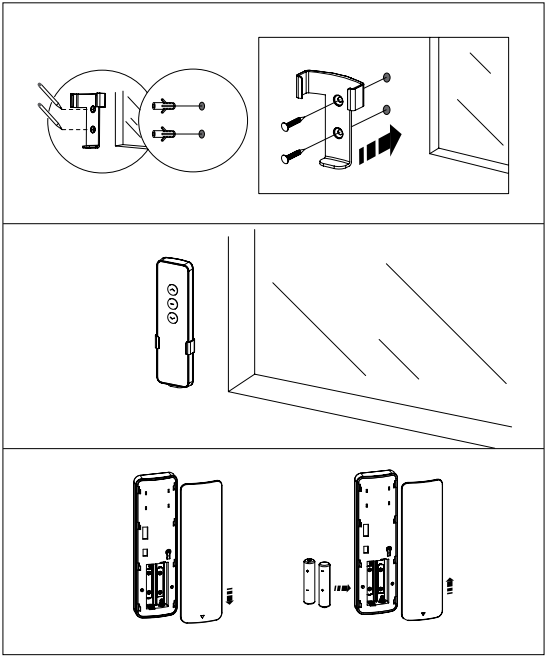

How to Install the Remote Holder #
Instructions for securing the remote holder.
Charging the DUO Shades #

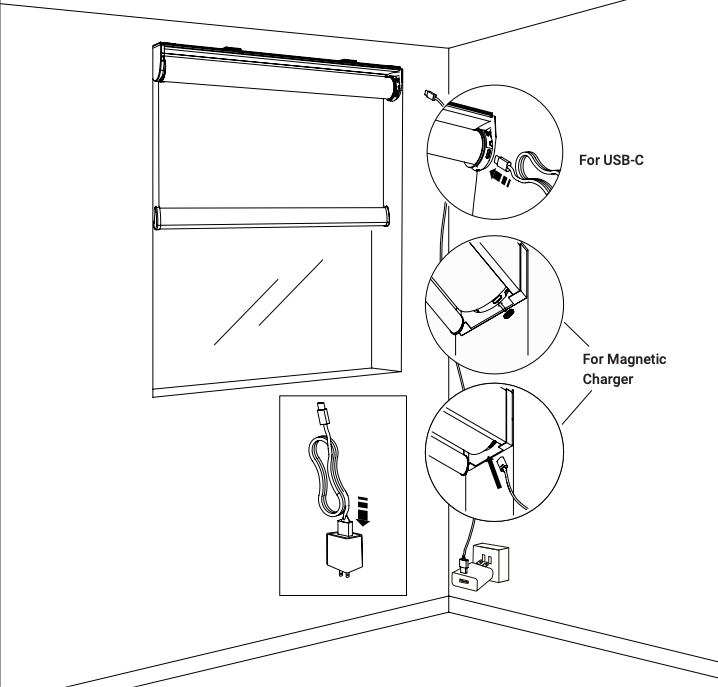

The Wirefree Duo shades will come with an adaptor for the upper/back motor. This contains the USB-C for charging, and a button for programming.
USB-C & Magnetic Charging Cable
Charging: Blinking Green LED
Fully Charged: Solid Green LED
Low Battery: Blinking Red LED

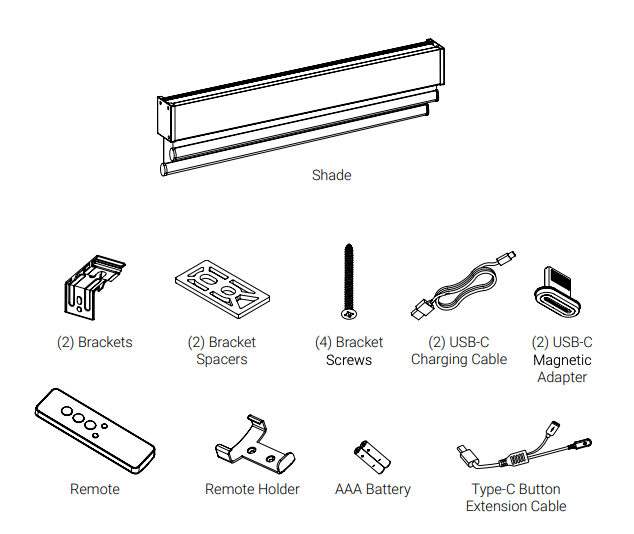

Parts in the Box #
Roll and Box types
Inside and Outside mount
(2) Brackets
(2) Bracket Spacers
(4) Bracket Screws
(2) USB-C Charging Cable
(2) USB-C Magnetic Adapter
(1) USB-C Button Extension Cable
(1 per order) Power Block – USB-C – 2Amp
AAA Battery
Remote Holder
Remote
