Complete guide to our precision-engineered Nano shading solutions

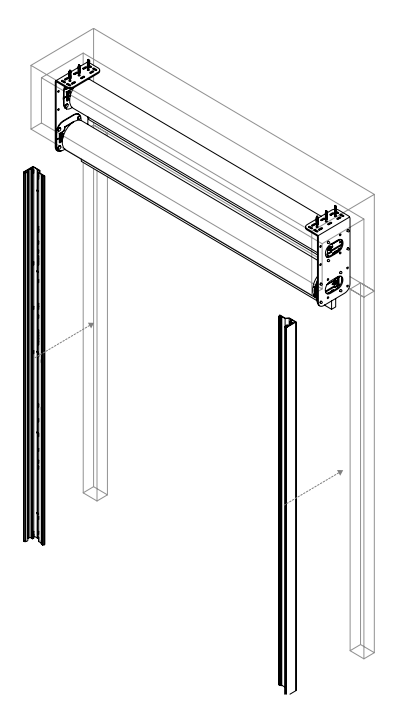

Step 1: Side Channel Installation #
Align the right face of the Side Channel with the right face of the right-end bracket.
Repeat process on the left-end bracket.
For the middle Side Channels, use the edge of each shade to centralize the channels between the shade gaps.

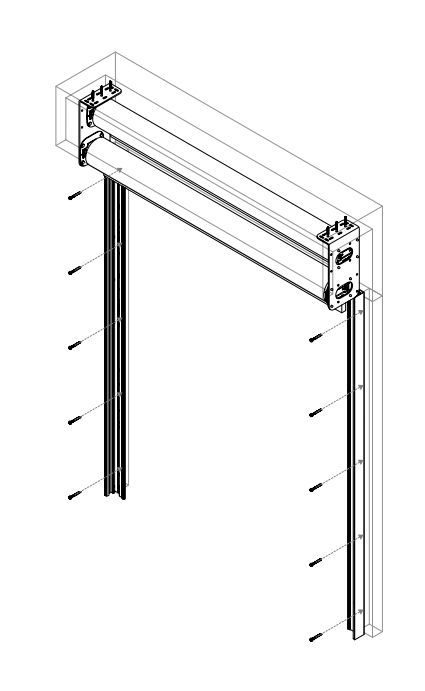

Step 2: Side Channel Installation #
Install screws through the pre-drilled holes.

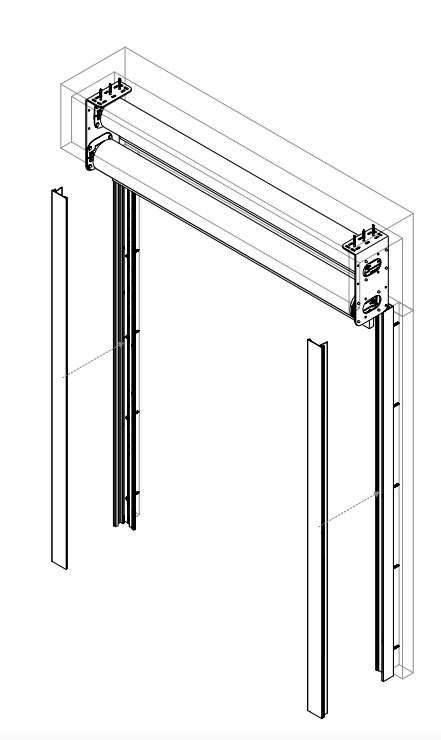

Step 3: Install Covers #
Install covers for each Side Channel.
