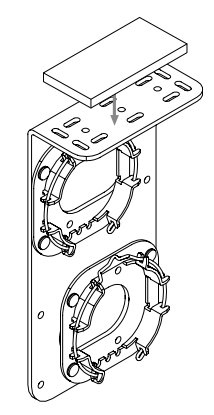

Step 1: Leveling Shims (Optional) #
Used if the window frame is out of level.
Connect to shade brackets before installation
Do not use more than 2 leveling shims per bracket.
Step 2: Measuring the Brackets #
Measure outside of the bracket to the outside of the bracket width and verify it matches the width the shade was ordered with.
Adjust accordingly
Step 3: Installing the Brackets #

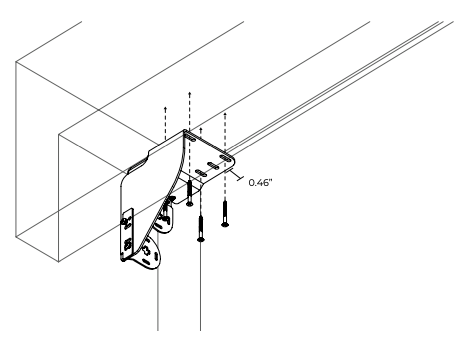

Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).

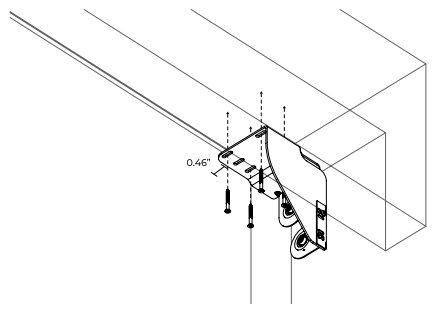

Install the idler side bracket inside of the pocket with a distance of 0.46 inches from the wall (backside).
Step 4: Installing the Roll #

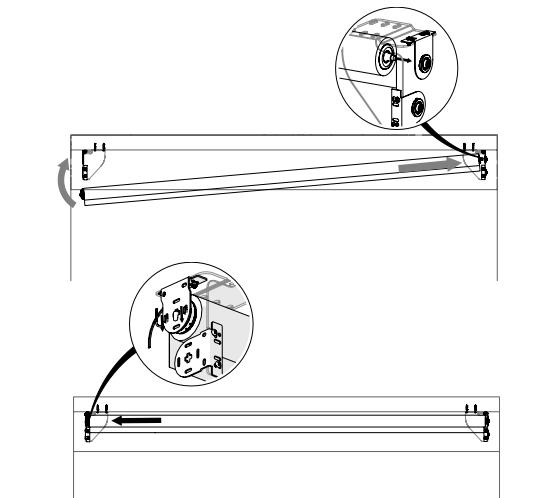

To install the roll: First, insert the idler side of the roll in the idler side bracket.
Making a slight pressure to the idler side, push up the motor side of the roll until lined up with the motor side bracket.
Repeat this process for the other roll.
