The brackets will come attached to the shade.
Top Mount: If you opt for inside mount your window frame should have a depth of at least 3″ to attach the brackets at the top of the window frame
Mounting the Brackets #
Before installing the shade, it is necessary to install the brackets to the shade and position them correctly to determine where the brackets will be mounted on the wall.

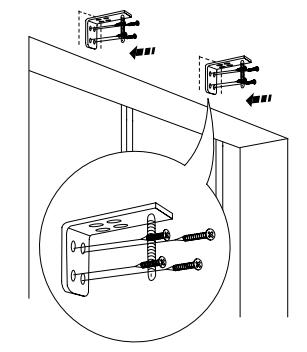

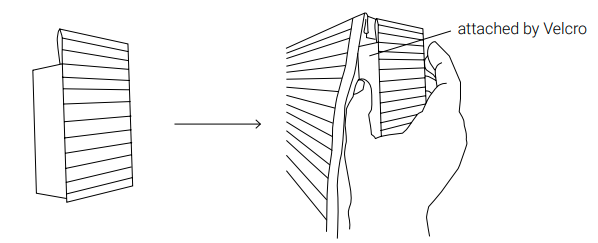

Detach the Installation brackets from the Shade. Pre-drill the mounting holes into the mounting surface at the pre-marked locations. Next, screw the brackets in place into the mounting surface, 2-3″ from the outside edge.
Measure the location of the brackets at the sticker location on the shade.
Install the brackets up to 2″ from the outside of the shade.
Level the brackets to each other.
Install the Shade #

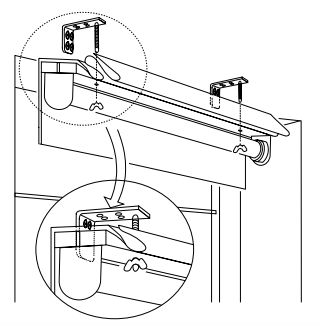

Hold the shade and thread the screws on the bracket through the slots on the headrail, then tighten the wing nuts.
To level the shade, adjust the wing nuts to the desired position.

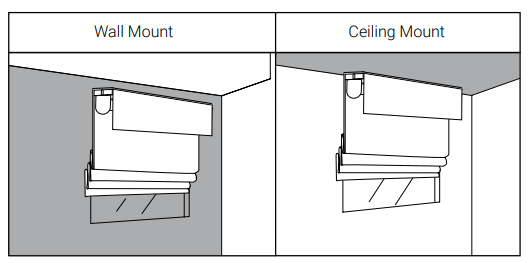

Installation – Outside Mount #
Mounting the Brackets #
Before installing the shade, it is necessary to install the brackets to the shade and position them correctly to determine where the brackets will be mounted on the wall.

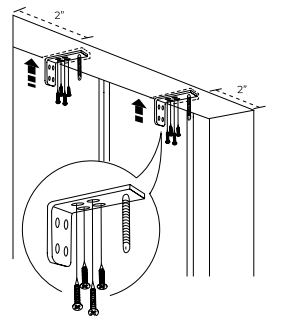

Detach the Installation brackets from the Shade. Pre-drill the mounting holes into the mounting surface at the pre-marked locations. Next, screw the brackets in place into the mounting surface, 2 from the outside edge.
Measure the location of the brackets at the sticker location on the shade.
Install the brackets up to 2″ from the outside of the shade.
Level the brackets to each other.
Install the Shade #

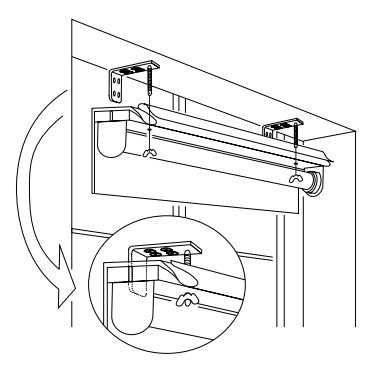

Hold the shade and thread the screws on the bracket through the slots on the headrail, then tighten the wing nuts.
To level the shade, adjust the wing nuts to the desired position.
Installing Side Covers #
Setup #
Wake up your Shade
Make sure the shade the shade is Awake buy pressing and holding the Motor Head Button for 1 jog #
Adjusting Limits #
Adjusting the Upper limit
Move the shade to its current limit.
Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
Move the shade to the desired location.
Simultaneously press “Up” & “Stop” on the remote until the motor jogs once.
Adjusting the Lower limit
Move the shade to its current limit.
Simultaneously press “Down” & “Stop” on the remote until the motor jogs once.
Move the shade to the desired location.
Simultaneously press “Down” & “Stop” on the remote until the motor jogs twice.
Change Nino Motor rotation #
With no limits
Press and hold the “Up” & “Down” button on the remote until the motor jogs once.
With limits
Press the programming button on the back of the remote until the motor jogs once.
Simultaneously press the “Up” & “Down” button for one until the motor jogs once.
Changing Motor Speed #
Increasing Speed
Press the programming button on the back of the remote until the motor jogs once
Press the “Up” button c. Press the “Up” button to increase speed, or “Down” to decrease speed. The motor will jog to indicate current set speed.
1 jog level 1
2 jog level 2
3 jog level 3
If motor does not respond, it has reached its maximum speed.
Decreasing Speed
Press the programming button on the back of the remote until the motor jogs once
Press the “Down” button
Press the “Down” button to decrease speed, or “Up” to increase speed. The motor will jog to indicate current set speed.
1 jog level 1
2 jog level 2
3 jog level 3
If motor does not respond, it has reached its maximum speed
Tilt Mode #
To switch between tilt mode (moves an inch with each press) and running modes (moves continuously)
Ensure the shade limits are set, and then follow these steps below:
Using the remote, hold the UP and DOWN buttons for around 5 seconds; the motor will jog once.
After the motor jogs, press the STOP button, the motor will jog once, indicating it has entered Tilt mode, this is a toggle feature.
NOTE: To return to running mode for continuous movement, simply follow the procedure outlined above again.
Factory Reset the Motor #
This will erase limits, and any paired remotes
Push and Hold the Motor Head button for 4 Jogs (Down – Up)

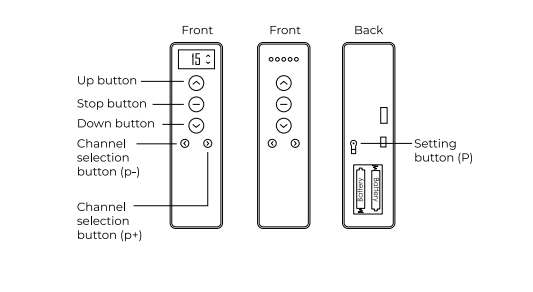

Nino Remote Settings #
Adding a Remote #
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the new Remote control you want to add until the motor jogs once
Removing a Remote #
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the Remote control currently paired to the motor until the motor jogs once
Press the programming button on the new Remote control you wish to remove until the motor jogs once
Pairing an additional Nino motor to a Remote #
Press the programming button on the head of the motor for 1 jog.
Press the “Stop” button on the remote for 1 jog.
Unpair a remote from a Nino motor #
Press the programming button on the head of the motor for 1 jog.
Press the “Stop” button on the remote for 1 jog.

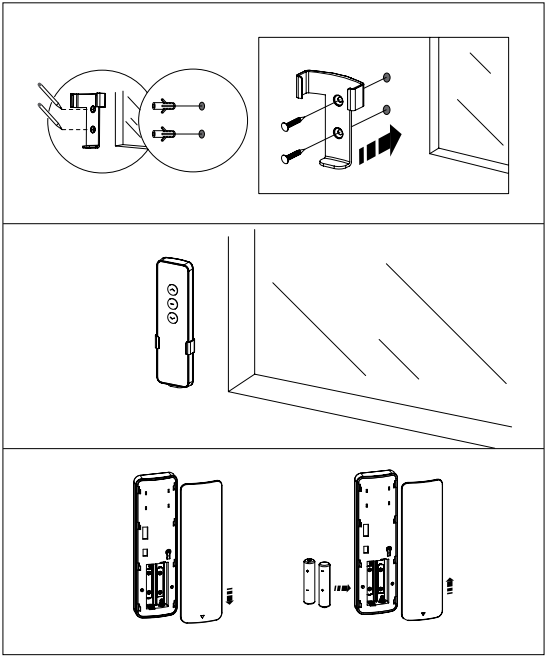

How to Install the Remote Holder #
Instructions for securing the remote holder.
Charging the Shade #

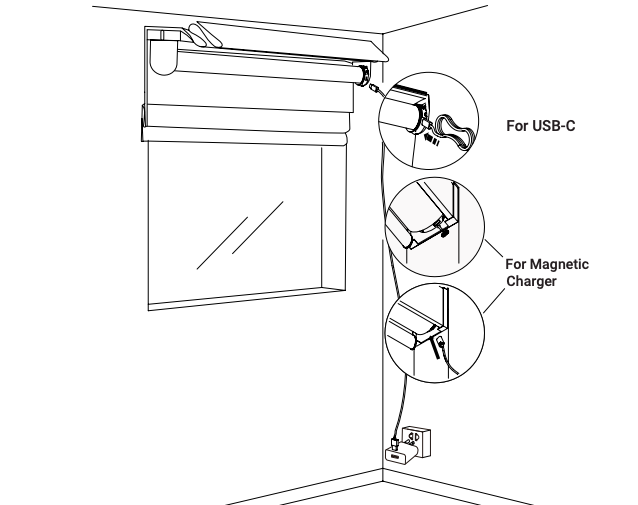

USB-C & Magnetic Charging Cable
Flip up the rubber cover open on the front of the shade to expose the USB-C Plug
Charging: Blinking Green LED
Fully Charged: Solid Green LED
Low Battery: Blinking Red LED
Parts in the Box #
Roll and Box types
Inside and Outside mount

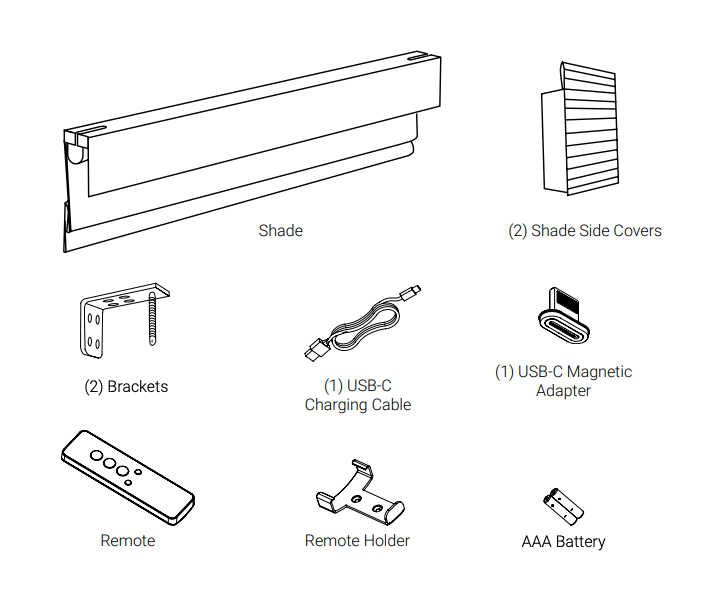

(2) Brackets
(2) Bracket Spacers
(4) Bracket Screws
(1) USB-C Charging Cable
(1) USB-C Magnetic Adapter
(1 per order) Power Block – USB-C – 2Amp
AAA Battery
Remote Holder
Remote
