Niño: Wall Remote

Features

Mix & match shades on a 5-channel remote
Multiple channels can be selected and controlled simultaneously
Control multiple devices in the same channel
Pairs directly with the shade • Limit-setting fully supported

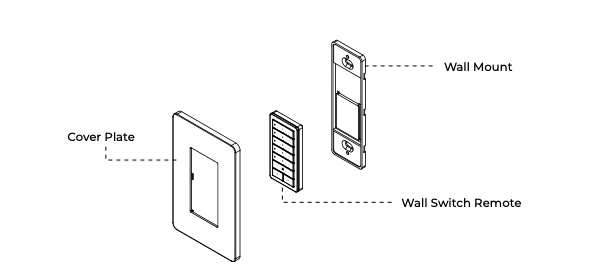

Securely flush mounts to a wall with or without a junction box
Compatible with standard decora cover plates
Optionally functions as a hand held remote

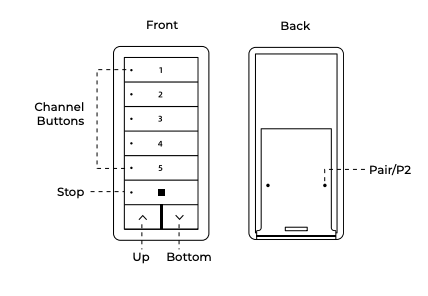

Button Function Description #

The single-channel or 5-channel wall switch remote is compatible with all motorized shades and tubular motors provided by us, functioning similarly to our current handheld remote.

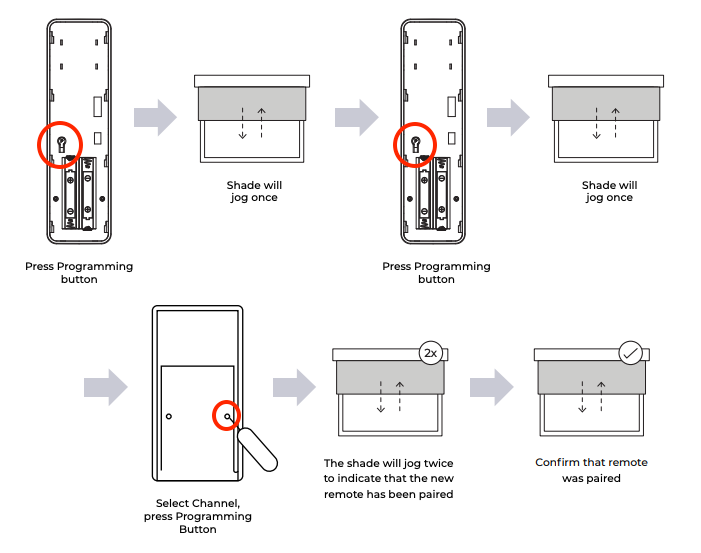

Pairing your remote

Make sure to remove the plastic battery saver

Using the remote that came with your Niño shades, follow the steps below

Battery Replacement

Separate the remote covers using a screw driver.

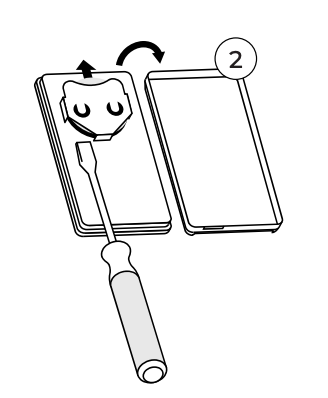

Once the back cover has been removed, use a screwdriver to assist in removing the battery. Ensure that the circuit board is not damaged during this process.

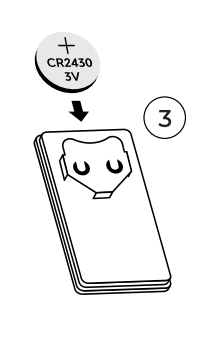

The replacement battery should have its label facing up. Check that the replacement battery has not been used or stored for more than a year. The battery lifespan will be reduced if it is stored for an extended period of time.

Technical Specifications
